3PCS RCWL-0516 RCWL 0516 Microwave Radar Sensor Motion Detection Sensor Human Sensor Body Sensor Module Induction Switch Module

Product introduction:

1. Working voltage: 4-28V
2. Working present: 2.8mA (typical); 3mA (max)
3. Detection distance: 5-7m
4. Transmission energy: 20mW (typical); 30mW (max)
5. Output voltage: 3.2-3.4V
6. Output voltage driving capability: 100mA
7.Set off Means: Repeat set off
8.Output management low degree: 0V
9.Output Management Excessive Degree: 3.3V
10. Working temperature: -20 ~ 80 Celsius
11. Storage temperature: -40~100 Celsius

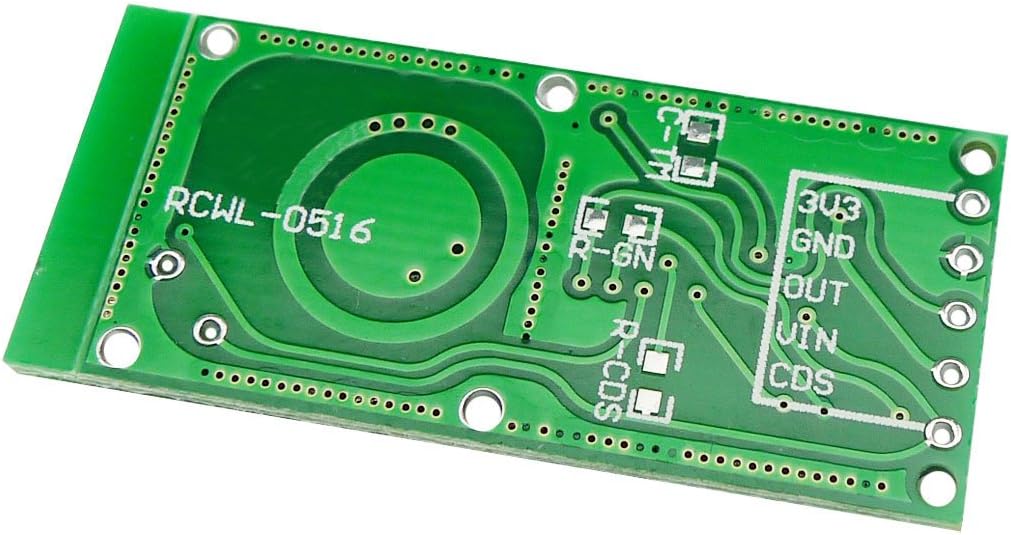

Setting half Introduction:

1.C-TM
Repeat Alter set off time, default set off time is 2s; Growing capacitor capability will make repeat set off time longer; and precise rely set off time can work as follows: stick capacitor on C-TM, check 9196 3-pin frequency F, repeat set off time T=(1/f)* 32768

2.R-GN
Detection distance adjustment; Reference to resistance and detection distance turns into shorter; if not, the detection distance is 7 m; When related with 1 M Ohm resistance, the detection distance is 5 m

3.R-CDS
Inner VCC parallel port with inner 1M ohm resistor to CDS pin (i.e. 196 9 pin) by way of R-CDS, CDS port with photoresistor, you possibly can shut the detection perform at evening

Package deal included:
3 x RCWL-0516 Microwave Radar Sensor Sensible Change Module Human Physique Induction Module 4-28V 100mA
This RCWL-0516 module has the traits of excessive sensitivity, excessive induction distance, excessive reliability, giant induction angle, extensive energy provide voltage vary, and so on. it’s extensively utilized in numerous sorts of human physique induction lighting and alarm and so forth.

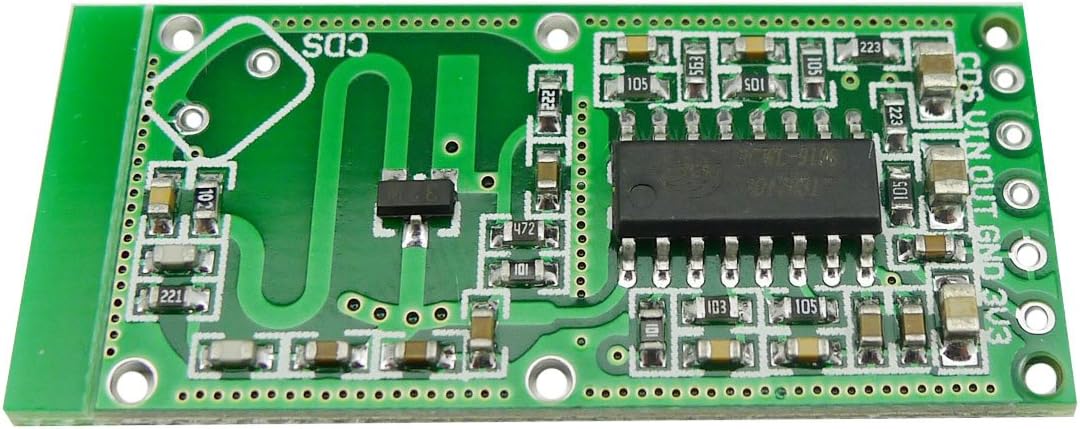

Transmission Sign Processing Management Chip: RCWL-9196, which is specifically designed for detecting objects’ movement.
Working voltage: 4.0-28.0V; Working present: 2.8mA~3mA; Output voltage driving capability: 100mA; Output voltage: 3.2V~3.4V (Typ 3.3V); Output management low degree: 0V; Output management excessive degree: 3.3V; Detection distance:5-7M.
In contrast with the Conventional Infrared Feeling PIR, RCWL-0516 Microwave Radar Sensor Module With the Penetrating Detection Functionality.This microwave detector board cannot solely detect human however animals and water.
Microwave radar sensor will sense movement by way of most something. The extra shielding there may be, the much less detection vary you get. I can detect movement by way of glass, partitions, ceilings and flooring. It is rather delicate. You may need to filter the ability provide.
