6PCS RCWL-0516 Microwave Radar Motion Sensor Module for Arduino ESP8266 Nodemcu Wemos Smart Switch Module Human Body Induction Detector 5-7M Distance 4-28V 100mA Rat Cat Detector

Product Description

RCWL-0516 Microwave Radar Movement Sensor Module for Arduino ESP8266 Nodemcu Wemos Good Swap Module Human Physique Induction Detector

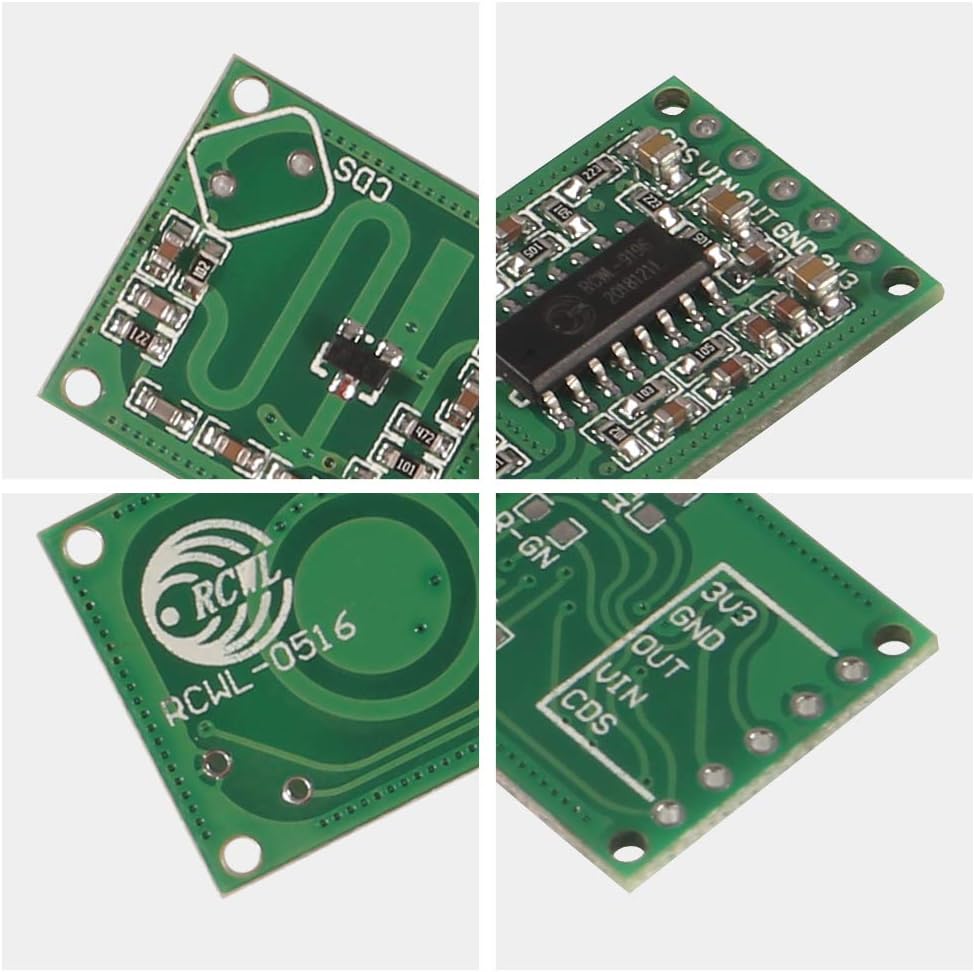

About pin header:

CDS = No connection

VIN = 5vdc (+) (9v battery additionally Okay)

OUT = 3.3vdc sign out when triggered

GND = 0vdc (-)

3V3 = No connection (in most purposes)

Parameters:

Working Voltage: 4-28V Working Present: 2.8mA (typical);3mA (max) Detection Distance: 5-7m Transmitting Energy: 20mW (typical);30mW (max) Output Voltage: 3.2-3.4V Output Voltage DrivingCapacity 100mA Set off Means: repeat set off Output Management Low Degree: 0V Output Management Excessive Degree: 3.3V Working Temperature: -20~80 celsius Storage Temperature: -40~100 celsius

About Adjustment Half:

C-T M: Alter repeat set off time (default 2 s). Including a capacitor will give an extended repeat set off time.

R-GN: Detection distance adjustment (default 7 m). Including a resistor the detection distance will change into shorter. If related with a 1-MΩ resistor, detection vary is about 5 m.

R-CDS: By including a resistor (in parallel with the inner 1-MΩ resistor), person can change the sunshine detection threshold as per particular person requirement. That is relevant solely when a lightweight sensor is soldered in its pads (CDS) on the entrance of the circuit board. A 47–100K resistor works tremendous with normal 5-mm LDRs

This Microwave Radar Detector Sensor Module is designed for detecting human beings and the transferring objects with the Doppler method microwave induction.

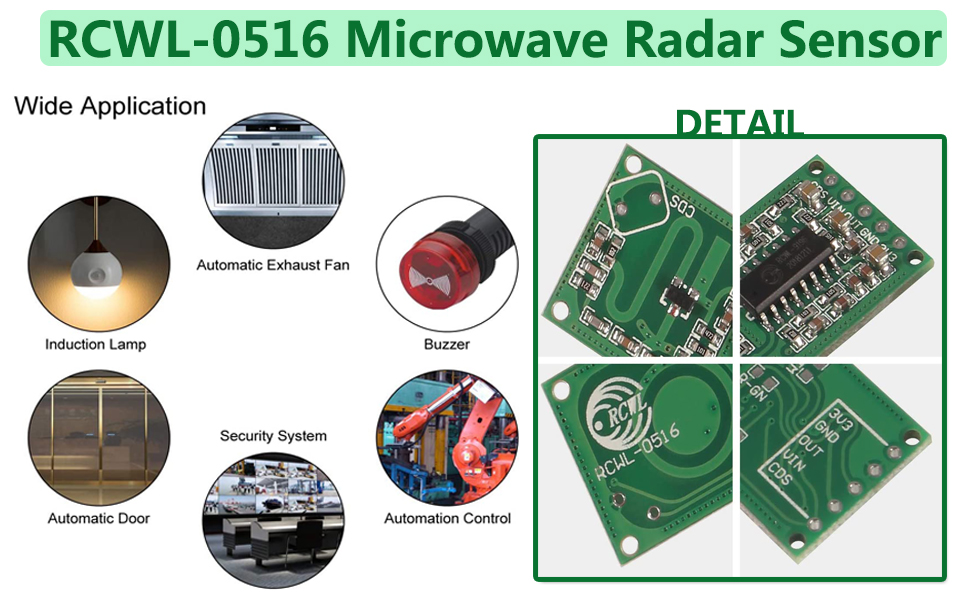

Excessive sensitivity, excessive induction distance, excessive reliability, massive induction angle, large energy provide voltage vary, and so on. it’s broadly utilized in varied sorts of human physique induction lighting and alarm and so forth.

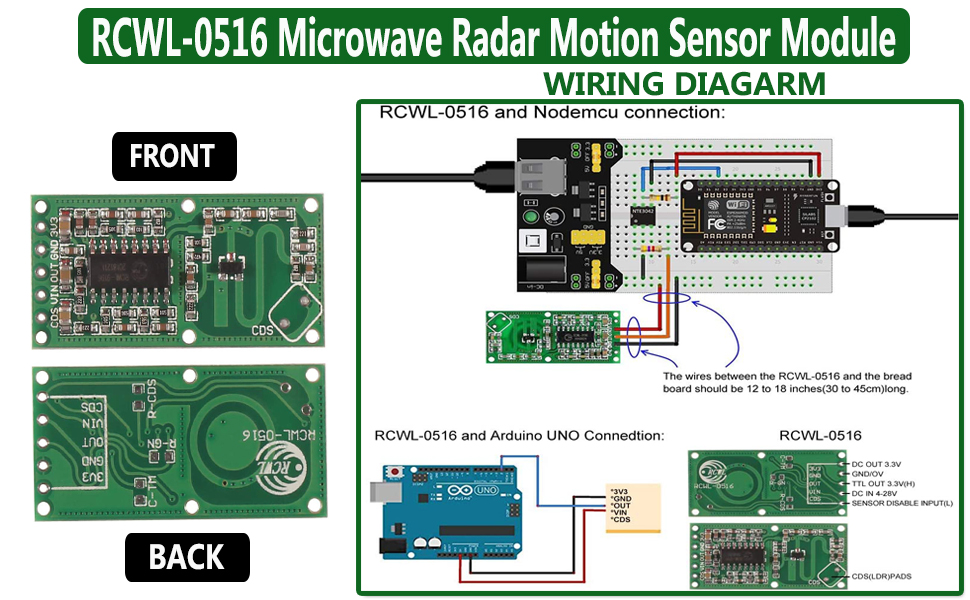

Can work for arduino/nodemcu/wemos and so on. Might be broadly used for human physique adaptive ahead lighting system, safety alarm system and so forth.

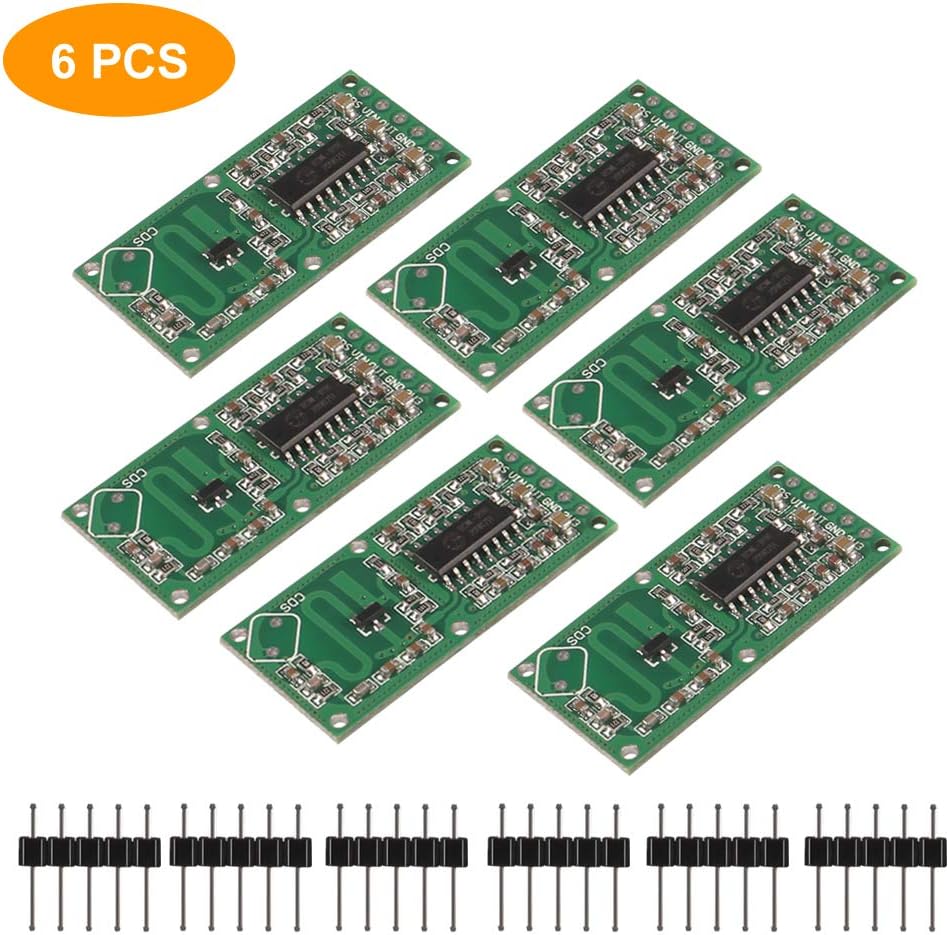

Package deal Consists of: 6 X RCWL-0516 Module Microwave Radar Sensor.
You probably have any questions, you possibly can contact us and we offers you a happy resolution.
