The Alarm Lock Trilogy T2 standalone digital digital keypad cylindrical lock leverset helps as much as 100 consumer entry codes of three to five digits for safe keyless entry, is for set up on inside doorways, has a satin chrome end, and a reversible lever deal with for right- or left-hand operation. The leverset might be manually programmed by way of the keypad, and LED indicators and sound present suggestions for code entry and programming. It has a cylindrical lock mechanism and a stable brass fastened key cylinder for key override to interact or launch the lock. The lever deal with might be put in for right- or left-hand operation. The leverset trim is made from chrome steel with a satin chrome end that resists corrosion. The leverset is powered by 5 AA batteries (included). It meets American Nationwide Requirements Institute (ANSI)/ Builders {Hardware} Producers Affiliation (BHMA) grade 1 requirements for business buildings, and in addition meets requirements that may assist adjust to the Individuals with Disabilities Act (ADA) when correctly put in. It is usually Underwriters Laboratories (UL) listed for a 3-hour hearth ranking and Federal Communications Fee (FCC) licensed.
Specs
Lock typeCylindricalUnique consumer codes supported100Number of digits every code3 to 5Key overrideSolid brass, 6-pin cylinder with pinned 5 SC1 keywayOperation5 AA batteries, 120,000 cyclesFits door thickness1-5/8 to 1-7/8″Backset width2-3/4″
Entry management keypads for doorways restrict entry to licensed customers. The door stays locked till a acknowledged code is entered by way of the numeric keypad and returns to the locked state when the door is closed after passage. Many models embody a leverset with a lock mechanism for key override to bypass the keypad. The lock mechanism could also be a set key cylinder put in by the producer, or it might settle for an interchangeable core that may be changed if safety is compromised. A cylindrical lock mechanism requires two bored perpendicular holes within the door for set up, one within the door face and a crossbore gap within the door edge. A mortise lock mechanism suits right into a pocket recess within the door edge.
Alarm Lock Methods manufactures mechanical and digital entry controls for safe entry and egress. The corporate, headquartered in Amityville, NY, meets Worldwide Group for Standardization (ISO) commonplace 9002.
What’s within the Field?
- Trilogy T2 digital digital keypad leverset
- Latch cylinder
- Strike plate
- Latch cowl
- Trim plate
- Keys (2)
- Battery pack with 5 AA batteries
Digital digital lock leverset is programmable by way of the keypad for 100 consumer entry codes for safe keyless entry
Cylindrical lock mechanism has a set 6-pin key cylinder with SC1 keyway for key override
For set up on inside doorways
Lever deal with is reversible for right- or left-hand operation, doesn’t include an IC Core

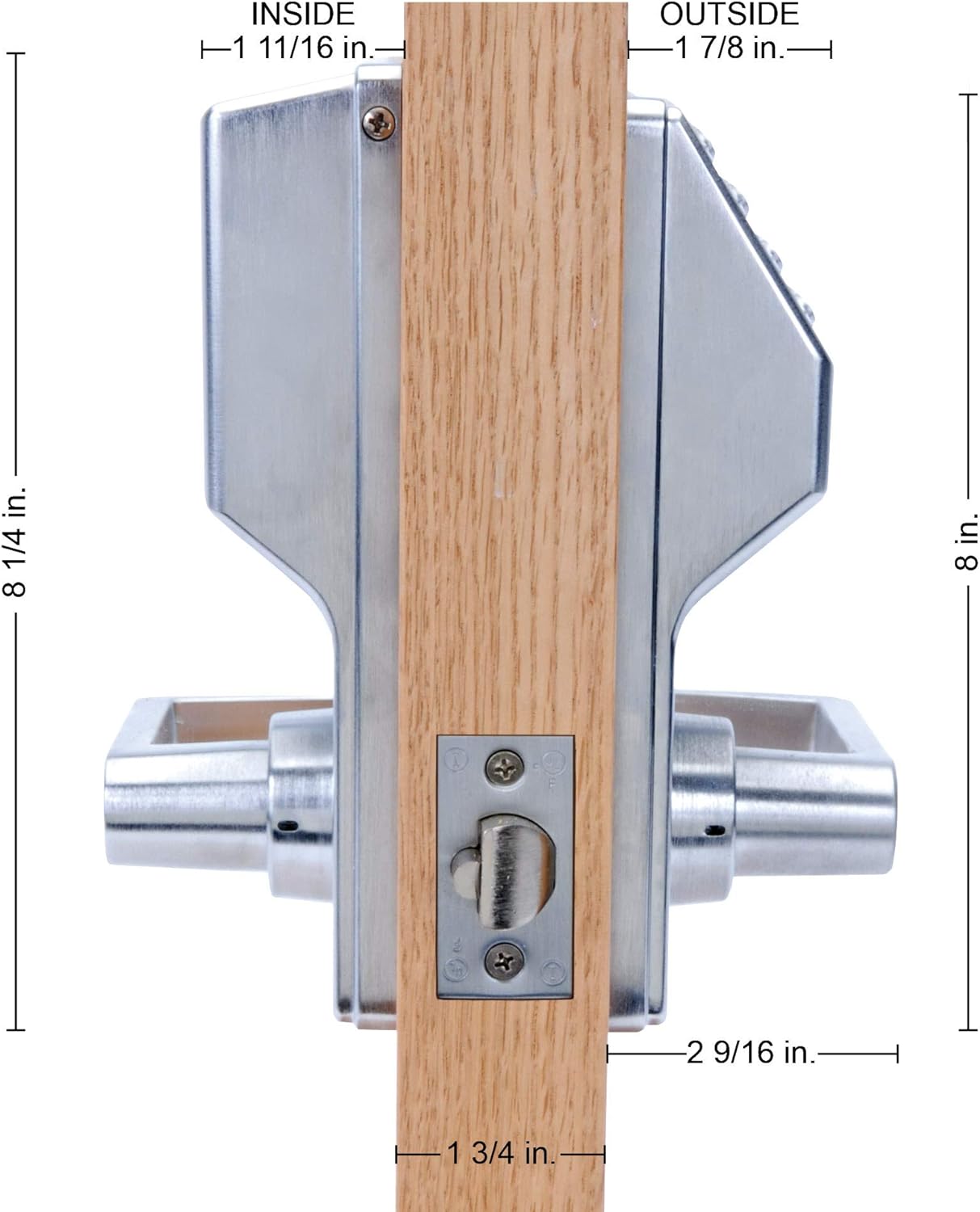

Chrome steel trim with satin chrome end resists corrosion.Actual-time automated lock/unlock schedules save manpower.Door Thickness: Matches 1 5/8″ to 1 7/8″
