10pcs Vibration Change Shock Vibration Sensor Shake Change
Description:
Output: Change Sensor
Vibration swap vibration sensor / vibration sensor / shaking ball swap (rolling marbles kind)

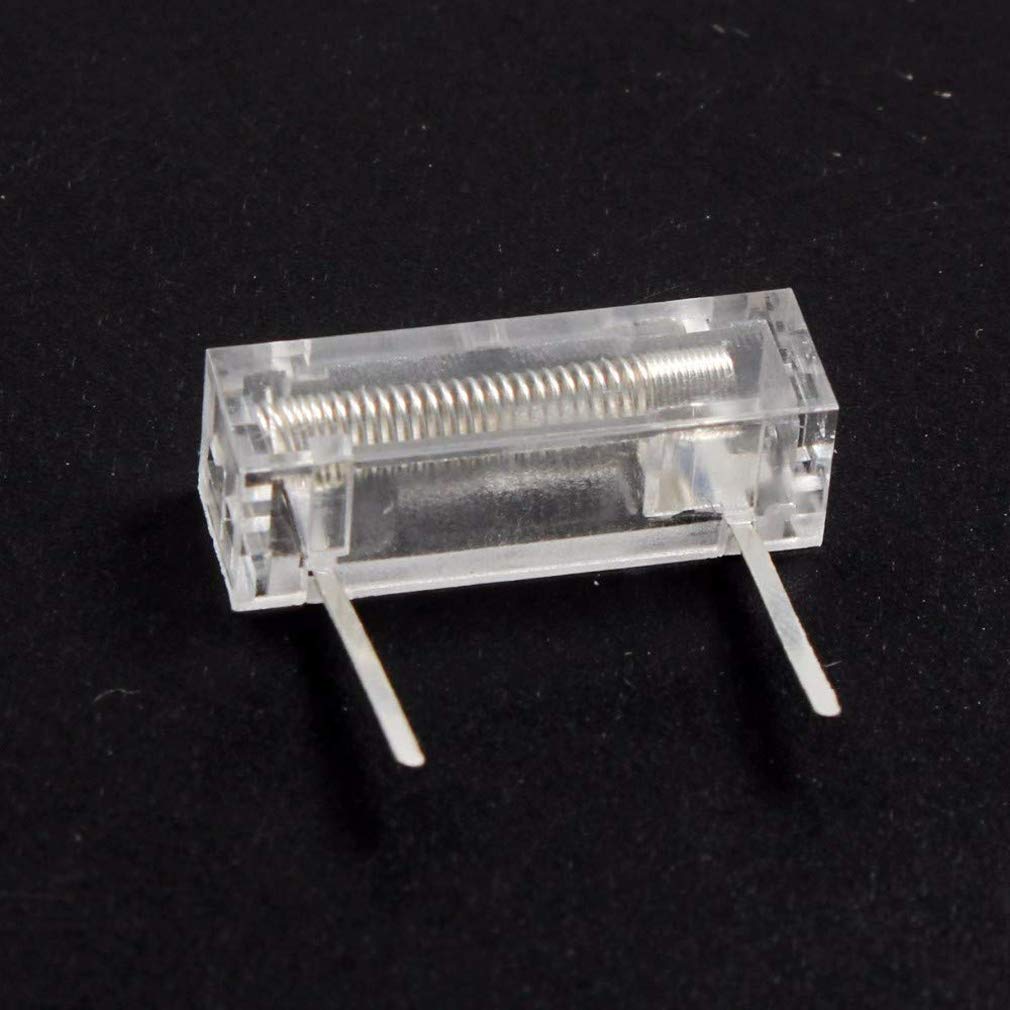

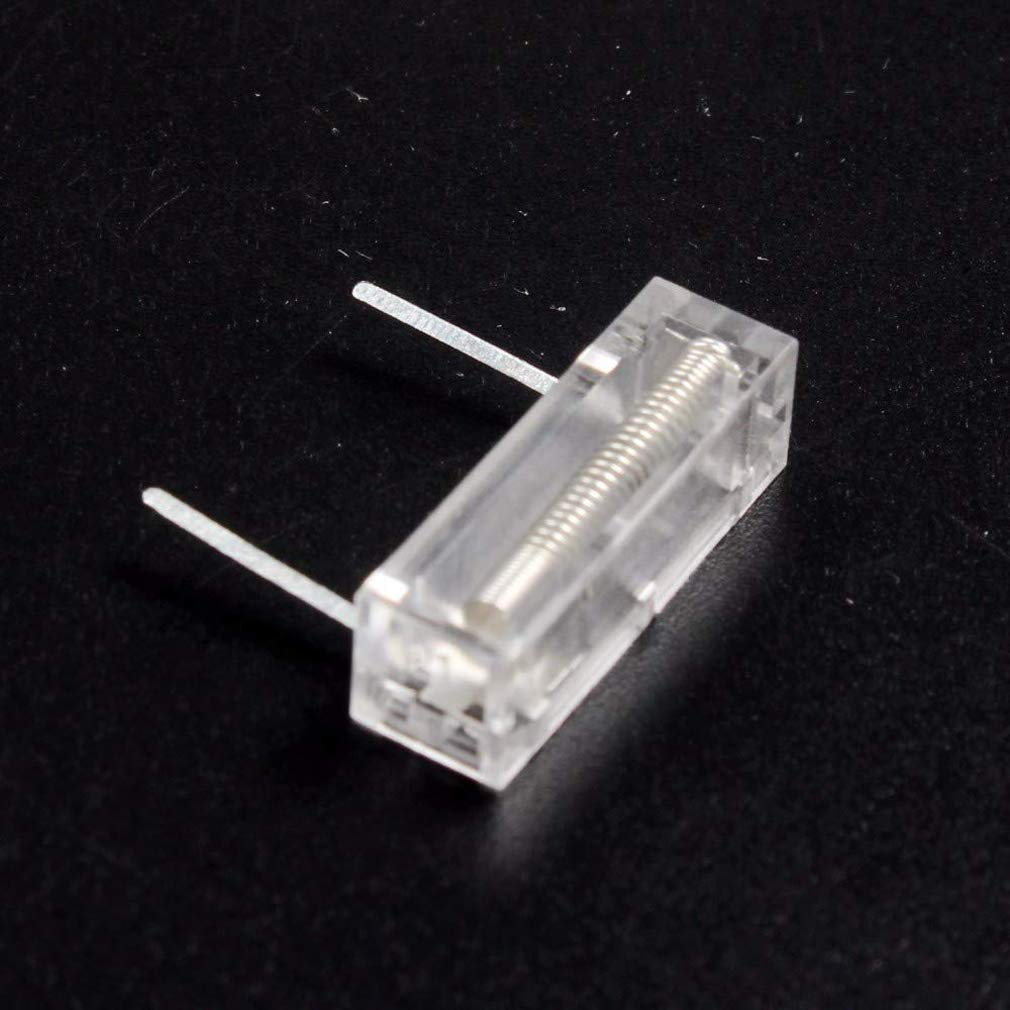

1. BL-540 is a spring-type, unidirectional vibration-sensing contact swap, which is triggered solely by downward pressure.
2. This collection of switches is within the open-circuit 0FF state when it’s stationary. When it’s subjected to downward pressure and reaches the corresponding vibration pressure, or when the transferring velocity reaches an applicable excessive (eccentric) pressure, the conductive pins will generate instantaneous conduction and turn into an instantaneous ON state. ;When the exterior pressure disappears, the swap returns to the open circuit 0FF state
3. The set off sensitivity of this collection of switches may be adjusted in response to buyer necessities.
4. The swap life can attain 200,000 occasions beneath regular use.
5. Appropriate for toys, burglar alarms, digital scales and different digital merchandise
Working life: Greater than 200000 cycles
Humidity: 95RH 40 levels, 96 hours
Terminal pull: 500gf/min
Temperature: -40°C to 80°C
Open circuit resistance: >10M ohm
Closed circuit resistance: <10ohm
On time: 2ms
Present: <20mA
Voltage: <12V DC
Dimension: 5.5mm * 5.5mm * 18MM
Package deal Contains:
10 * Shock Vibration Sensor Change
Is Discontinued By Producer : No
Package deal Dimensions : 4.5 x 2.2 x 0.2 inches; 0.63 ounces
Producer really useful age : 8 years and up
Merchandise mannequin quantity : 3-01-0599
Date First Obtainable : July 23, 2014
Producer : HiLetgo
ASIN : B00M1PMW44
Working life: Greater than 200000 cycles
Present: <20mA
Voltage: <12V DC
Humidity: 95RH 40 levels, 96 hours
Terminal pull: 500gf/min
