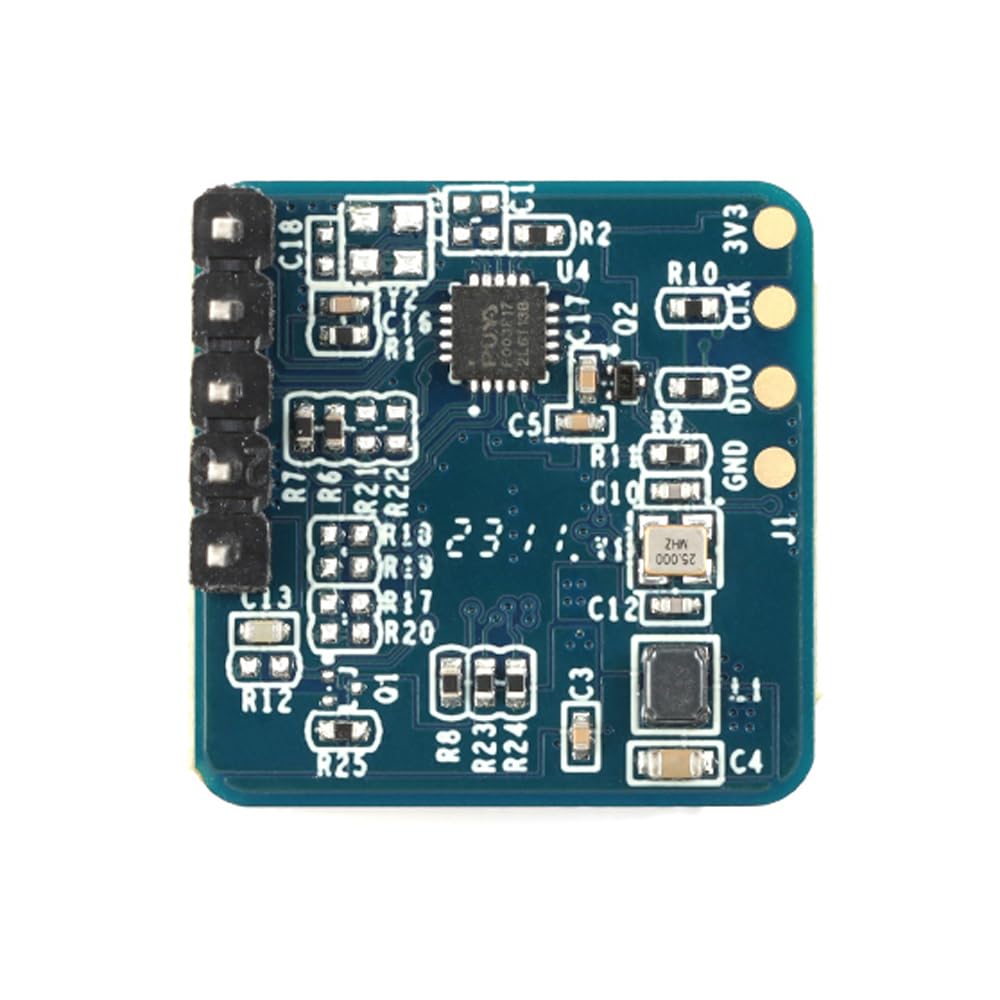

HLK-LD2420 24G Millimeter Wave Radar Sensor LD2420 FMCW Intelligent Human Body Micro Motion Module

Options:
Geared up with single-chip clever millimeter wave sensor SoC and clever algorithm firmware
Extremely-small module dimension: 20 mm × 20 mm
Load the default human sensor configuration, plug and play
24 GHz ISM frequency band, licensed by FCC, CE, and non-committee spectrum laws
3.3 V energy provide, help 3.0 V ~ 3.6 V large voltage vary
Common working present 50 mA
The detection goal is shifting and micro-moving human physique
Actual-time reporting of detection outcomes
Present visualization instruments to help the configuration of detection distance intervals, setting sensitivity and outcome reporting time between partitions
Helps the division of sensing vary, fully shielding any interference exterior the vary
Brief-range 0.2 m induction, no detection blind zone
The longest distance of human movement sensing is 8 m
Giant detection angle, protection reaches ±60°
Assist numerous set up strategies equivalent to ceiling hanging and wall hanging
Impartial configuration of set off and maintain state, sturdy anti-interference means

Bundle Dimensions ‏ : ‎ 3.5 x 2.3 x 0.39 inches; 0.16 ounces
Merchandise mannequin quantity ‏ : ‎ HLK-LD2420
Date First Obtainable ‏ : ‎ November 2, 2023
Producer ‏ : ‎ RAKSTORE
ASIN ‏ : ‎ B0CMD34GT5

HLK-LD2420 is principally used to detect whether or not there’s motion or slight motion of the human physique within the indoor scene notion space, and refresh the detection leads to actual time. It has a most sensing distance of 8 m for a shifting human physique.

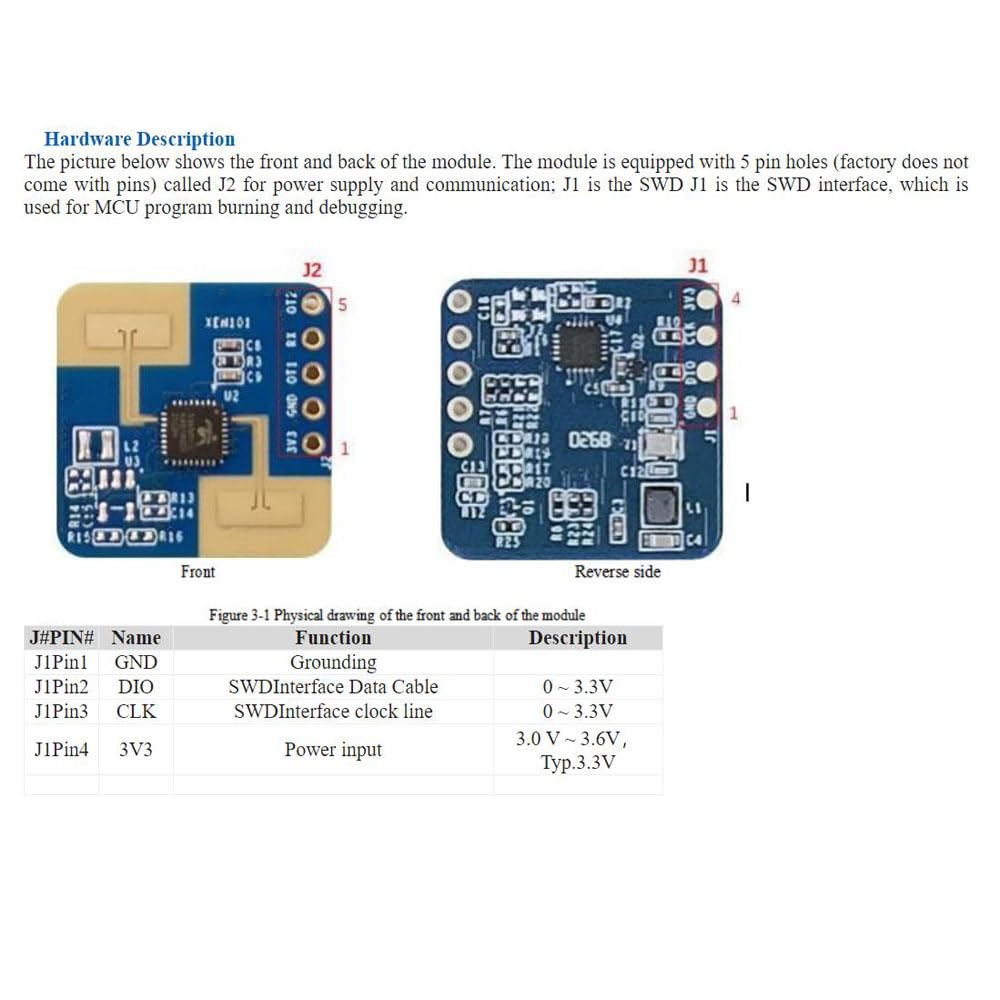

It could possibly simply configure the sensing distance vary, sensing sensitivity in several intervals and refresh time. It helps GPIO and UART interfaces, plug and play.
Geared up with single-chip clever millimeter wave sensor SoC and clever algorithm firmware.
3.3 V energy provide, help 3.0 V ~ 3.6 V large voltage vary
Extremely-small module dimension: 20 mm * 20 mm
