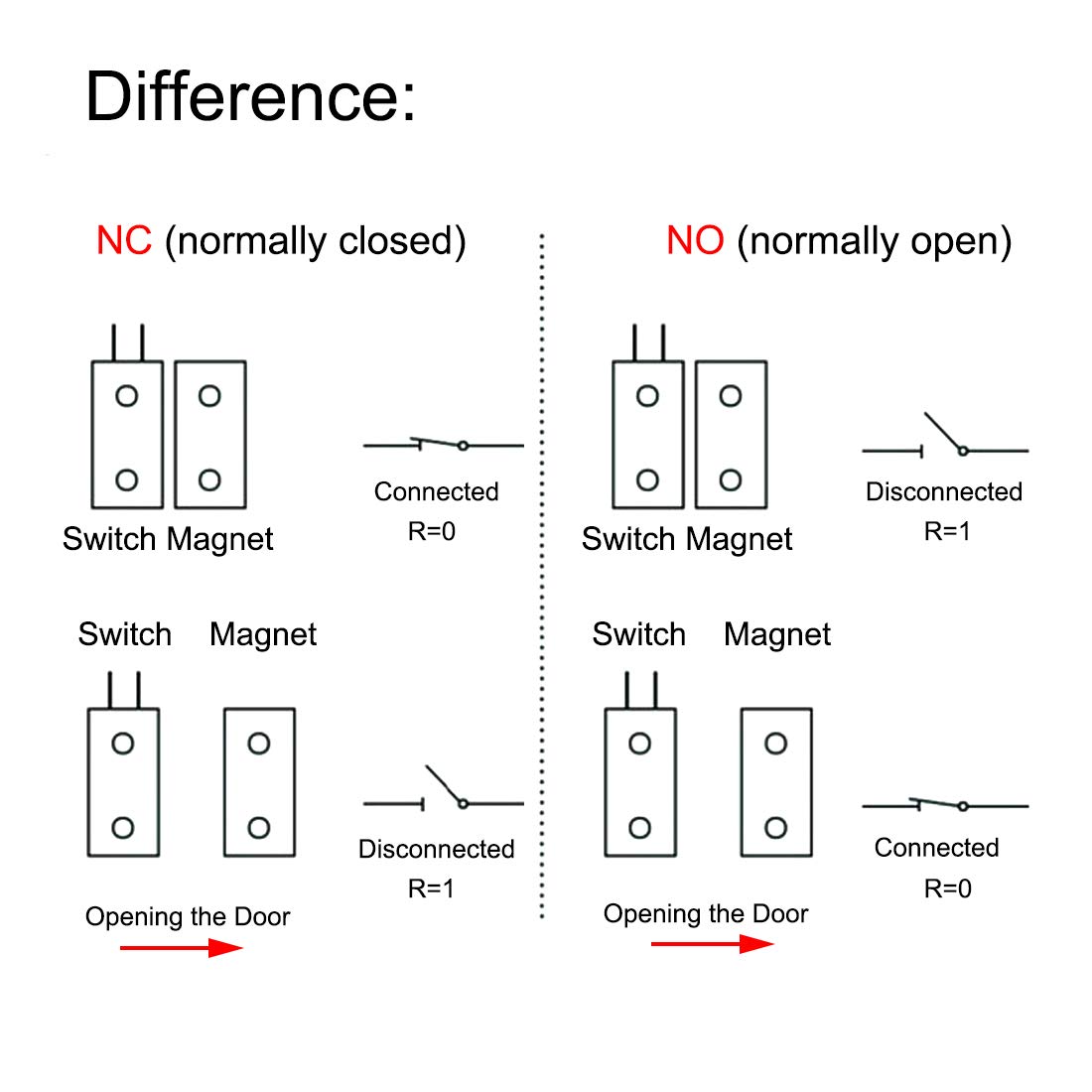

Variations of NC, NO, NC/NO
Usually Closed(NC): When the swap is near the magnet, the circuit is conductive(gentle on); when the swap is separated from the magnet, the circuit shouldn’t be conductive(gentle off).
Usually Opened(NO): When the swap is separated from the magnet, the circuit is conductive(gentle on); When the swap is near the magnet, the circuit shouldn’t be conductive(gentle off).
NC/NO Mixed: The swap has 3 contact sorts: NC/NO/COM, you’ll be able to select to attach two of the contacts(NC-COM or NO-COM).
PLEASE NOTE
A magnetic door contact can solely present a switching sign to the machine. It can’t straight load the ability provide and can’t be straight linked to the lamp.
Specs:
Mannequin: MC-38
Contact Sort: NC
Most Sensor Sensitivity: 10-20mm
Load Present: 100mA
Face up to Voltage: DC 0-36V
Working Voltage: DC 0-24V
Mounting Gap Distance: 18mm / 0.71inch
Measurement(Approx.):
27 x 14 x 8mm / 1.06 x 0.55 x 0.31inch (L*W*H)
Every Wire Size(Approx.): 30cm / 11.8inch
Wire Sort: 1007#/24#320mmUL
Housing Materials: ABS
Package deal Content material:
5pcs x Magnetic Door Swap
20pcs x Mounting Screws
Product Dimensions : 6.3 x 4.72 x 0.59 inches; 1.76 ounces
Merchandise mannequin quantity : Z20210513W01
Date First Out there : Could 14, 2021
Producer : VictorsHome
ASIN : B094XLXTYQ
MATERIAL – The swap housing is made from ABS flame retardant materials and the reed swap is proof against excessive temperature and deformation.

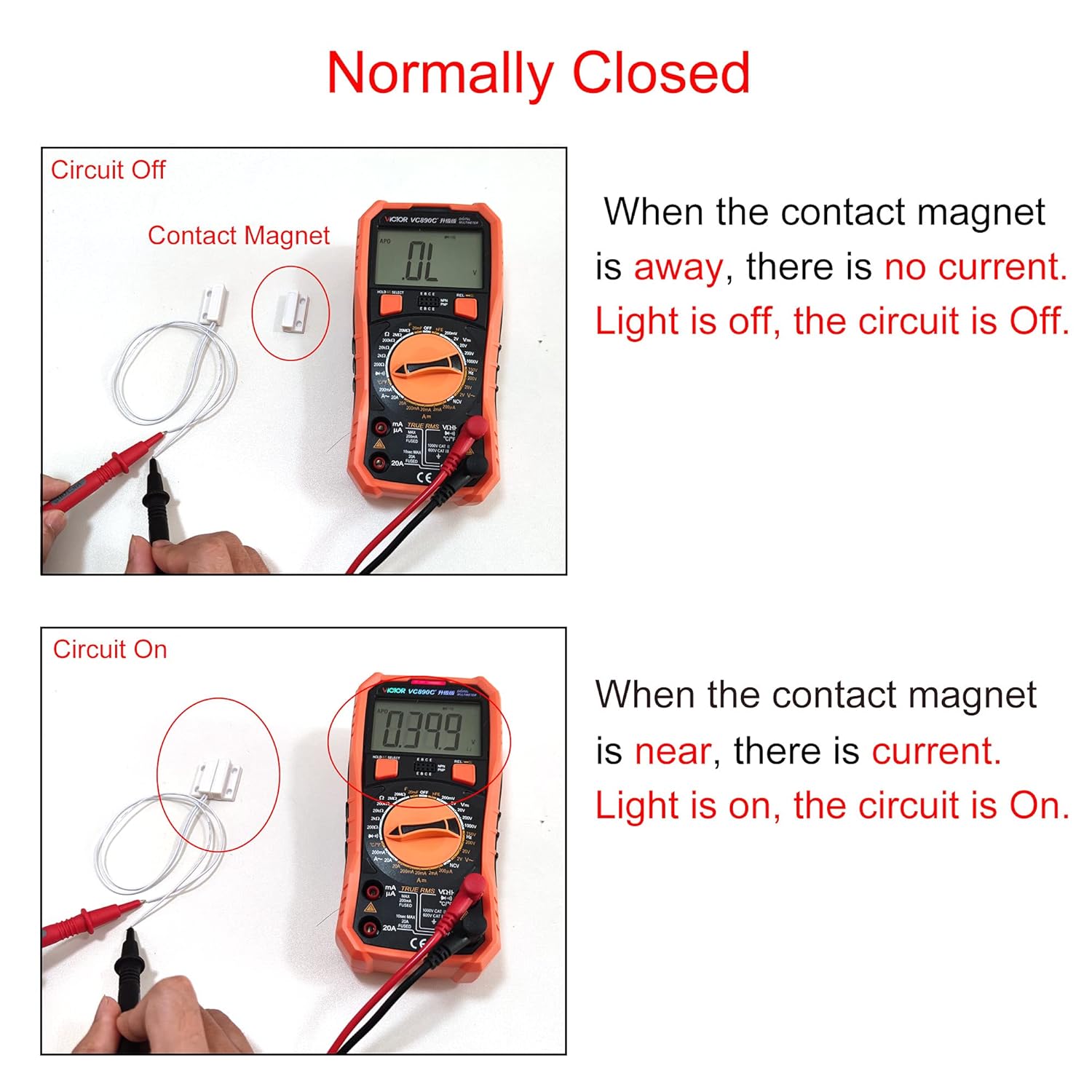

NORMALLY CLOSED(NC) – When the swap is near the magnet, the circuit is conductive(gentle on); when the swap is separated from the magnet, the circuit shouldn’t be conductive(gentle off).
ACTUATION DISTANCE – 10-20mm transmitting distance. The contact has quick reflection and correct detection.
WORKING CONDITIONS – When the magnetic door is energized, the voltage is managed at DC 0V-24V and the load present can’t exceed 100mA.
WIDE APPLICATIONS – Work with all entry management and burglar alarm methods. Could be put in in picket or aluminum alloy doorways and home windows.
