Magnetic Reed Switch NC Surface Mount Wired Door Window Contact Sensor with Cover for Home Security and Burglar Alarm Systems MC-31 5pcs

Variations of NC, NO, NC/NO
Usually Closed(NC): When the swap is near the magnet, the circuit is conductive(gentle on); when the swap is separated from the magnet, the circuit isn’t conductive(gentle off).
Usually Opened(NO): When the swap is separated from the magnet, the circuit is conductive(gentle on); When the swap is near the magnet, the circuit isn’t conductive(gentle off).
NC/NO Mixed: The swap has 3 contact varieties: NC/NO/COM, you’ll be able to select to attach two of the contacts(NC-COM or NO-COM).


PLEASE NOTE
A magnetic door contact can solely present a switching sign to the gadget. It can not instantly load the facility provide and can’t be instantly linked to the lamp.


Specs:
Mannequin: MC-31
Contact Sort: NC
Most Sensor Sensitivity: 16mm(+/-5mm)
Load Present: 100mA
Most Voltage: 100V DC
Mounting Gap Distance: 52mm / 2.05inch
Measurement(Approx.):
64 x 20 x 13mm / 2.52 x 0.79 x 0.51inch (L*W*H)
64 x 13 x 13mm / 2.52 x 0.51 x 0.51inch (L*W*H)
Housing Materials: ABS


Package deal Content material:
5pcs x Magnetic Door Swap
20pcs x Mounting Screws
Product Dimensions ‏ : ‎ 6.3 x 5.51 x 0.59 inches; 8.01 ounces
Merchandise mannequin quantity ‏ : ‎ Z20210513W04
Date First Obtainable ‏ : ‎ Could 14, 2021
Producer ‏ : ‎ VictorsHome
ASIN ‏ : ‎ B094XJ8P47

MATERIAL – The swap housing is product of ABS flame retardant materials and the reed swap is proof against excessive temperature and deformation.
NORMALLY CLOSED(NC) – When the swap is near the magnet, the circuit is conductive(gentle on); when the swap is separated from the magnet, the circuit isn’t conductive(gentle off).
ACTUATION DISTANCE – 11-21mm transmitting distance. The contact has quick reflection and correct detection.

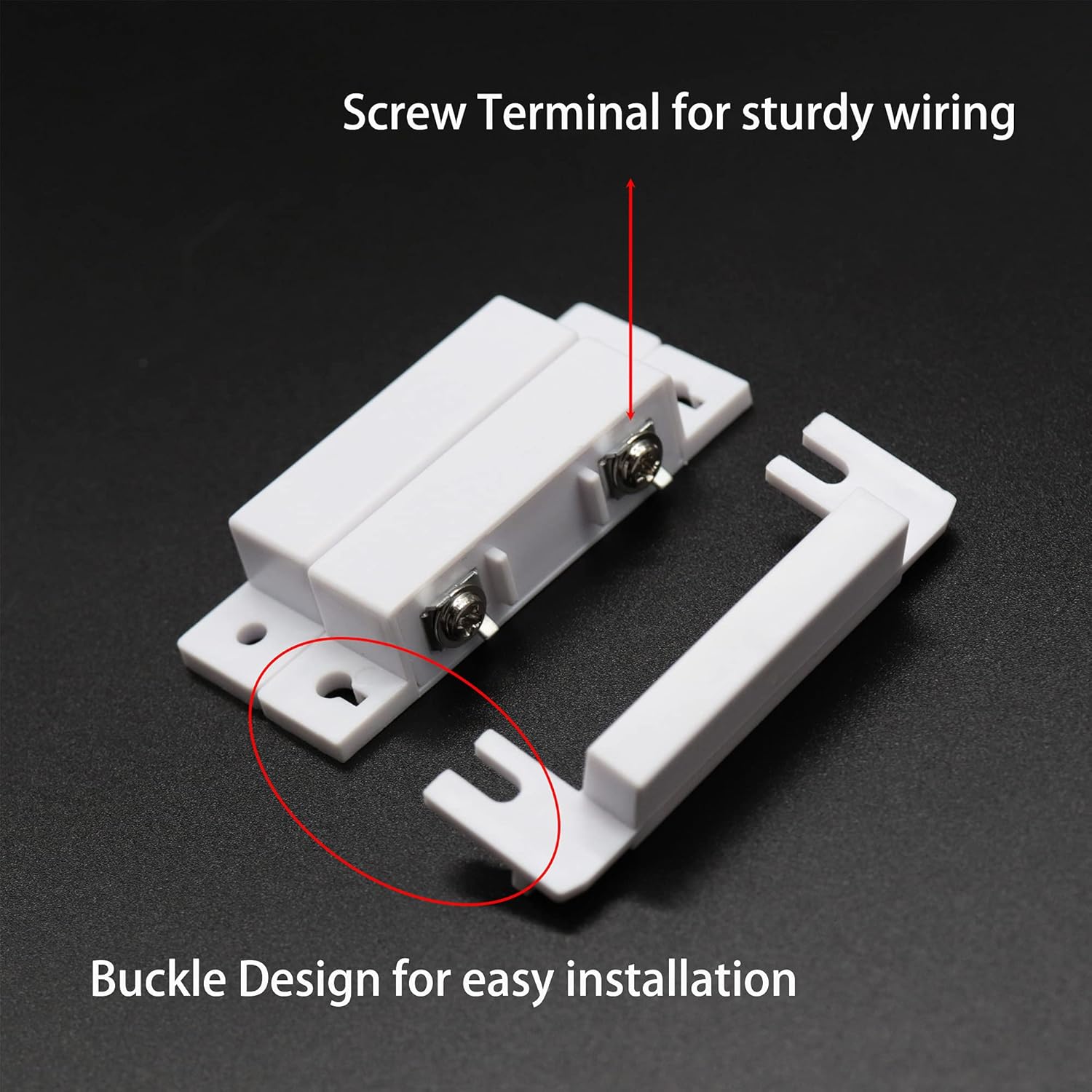

WORKING CONDITIONS – Load Present: 100mA; Most Voltage: 100V DC. The terminal has a removable cowl, which is extra stunning after set up.

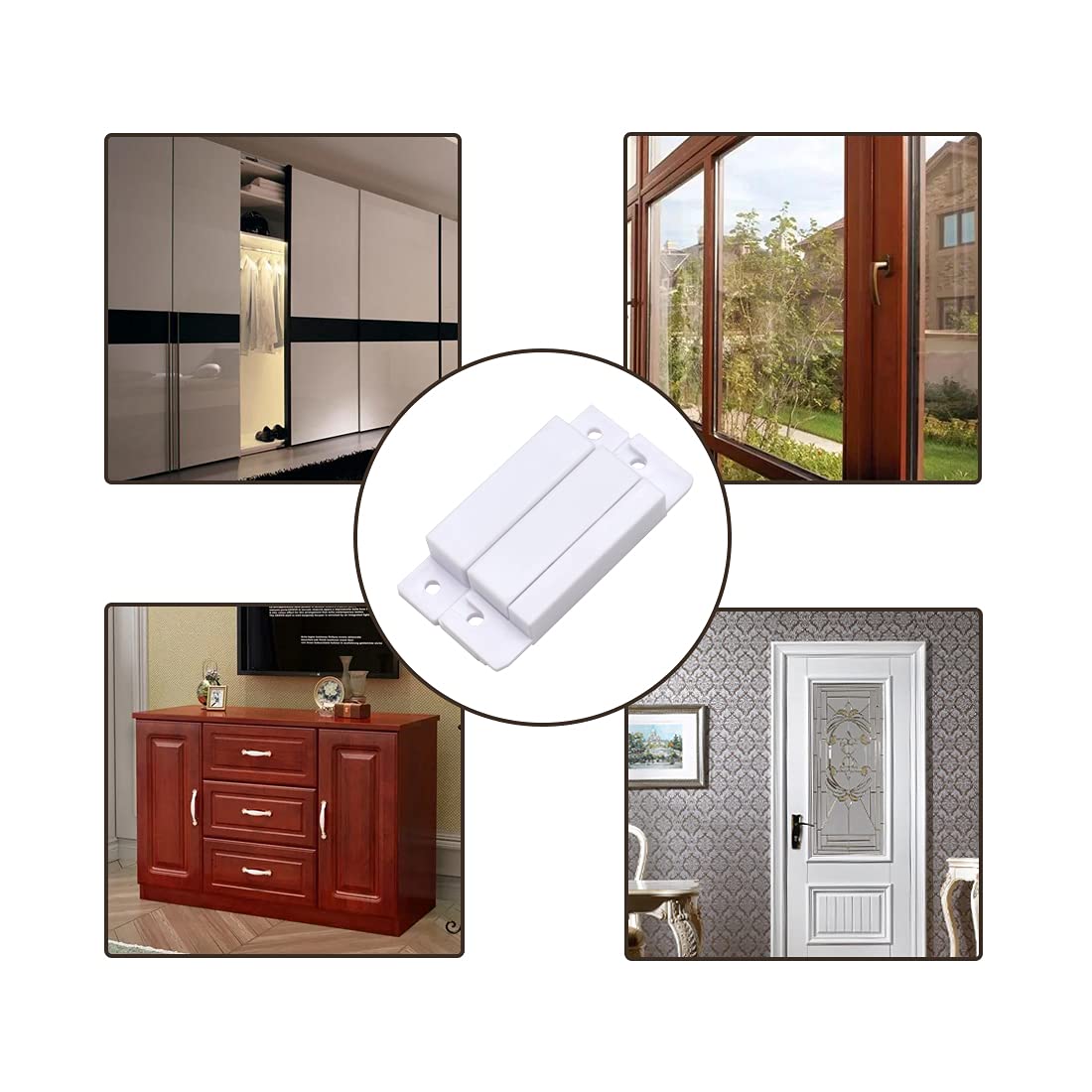

WIDE APPLICATIONS – Work with all entry management and burglar alarm techniques. May be put in in picket or aluminum alloy doorways and home windows.
