Magnetic Reed Switch RC-33 NC Recessed Wired Window Door Contact Sensor for Home Security and Burglar Alarm Systems 10 Pcs

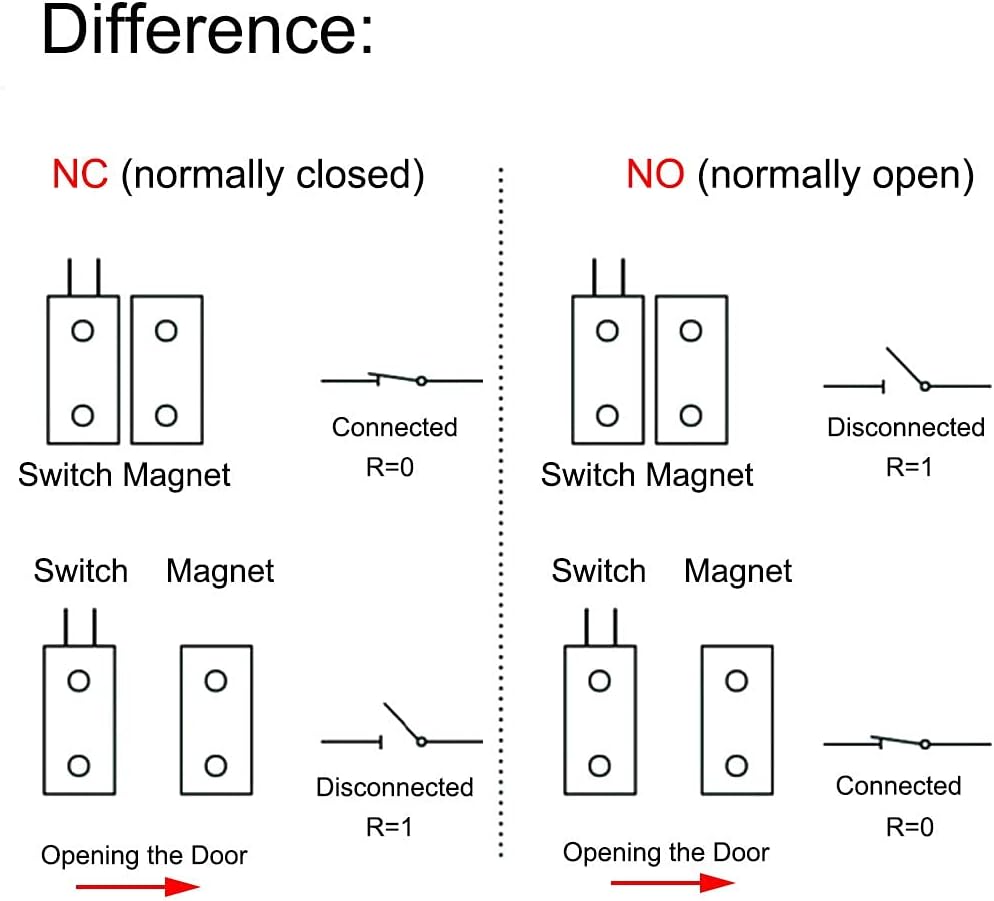

NORMALLY CLOSED
When the swap is near the magnet, the circuit is conductive(gentle on); when the swap is separated from the magnet, the circuit will not be conductive(gentle off).
WIDE APPLICAIONS
Work with all entry management and burglar alarm methods. Could be put in in picket or aluminum alloy doorways and home windows.
PLEASE NOTE
A magnetic door contact can solely present a switching sign to the gadget. It can’t immediately load the facility provide and can’t be immediately related to the lamp.

Specs:
Mannequin: RC-33
Contact Kind: NC(Usually Closed)
Max. Sensor Sensitivity: 10mm(+/-5mm)
Max. Present: 120mA
Max. Voltage: 100V
Working Voltage: DC0-24V
Max. Contact Energy: 10W

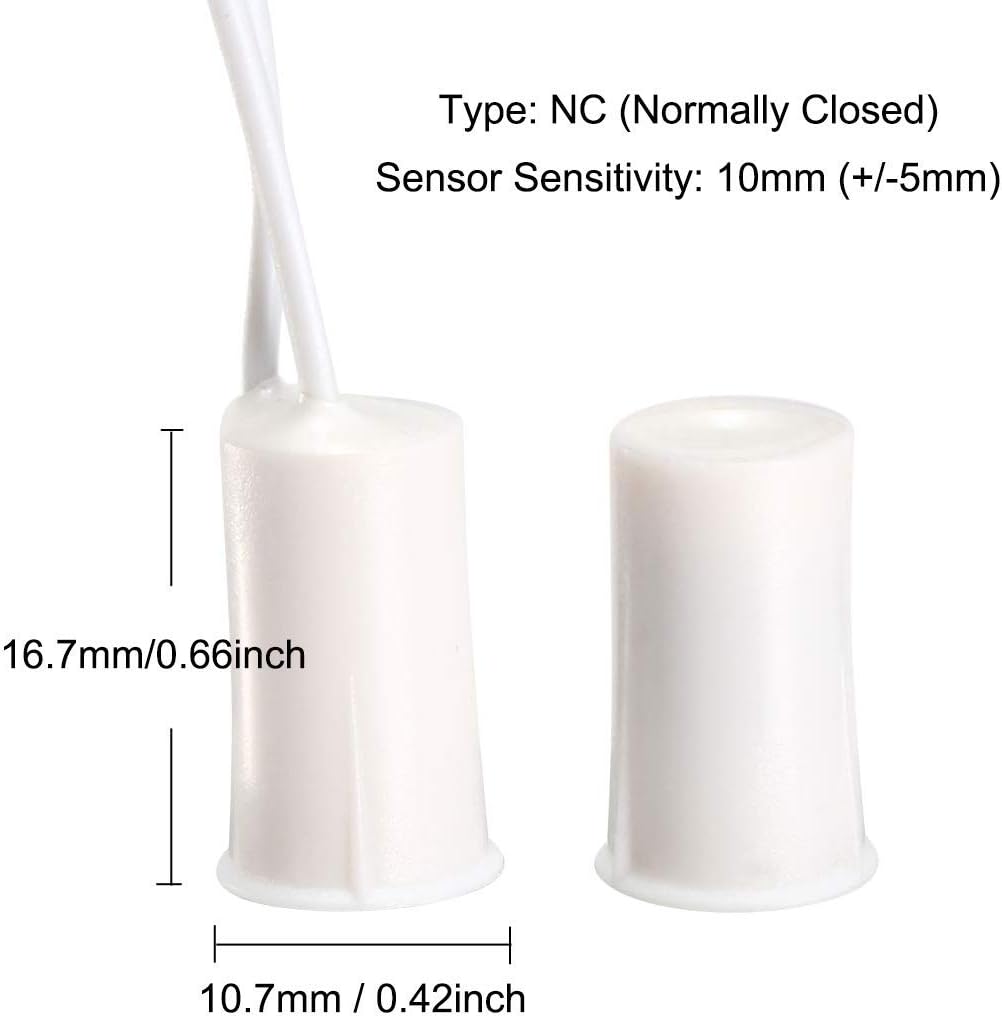

Dimension(Approx.): 16.7 x 10.7mm / 0.66 x 0.42inch (H*D)
Cable Size(Every): 30cm / 11.8inch
Housing Materials: ABS
Wire Kind: 1007#/24#300mmUL


Bundle Content material:
10 x Magnetic Door Swap
☀MATERIAL – The swap housing is product of ABS flame retardant materials and reed swap, is immune to excessive temperature and deformation.

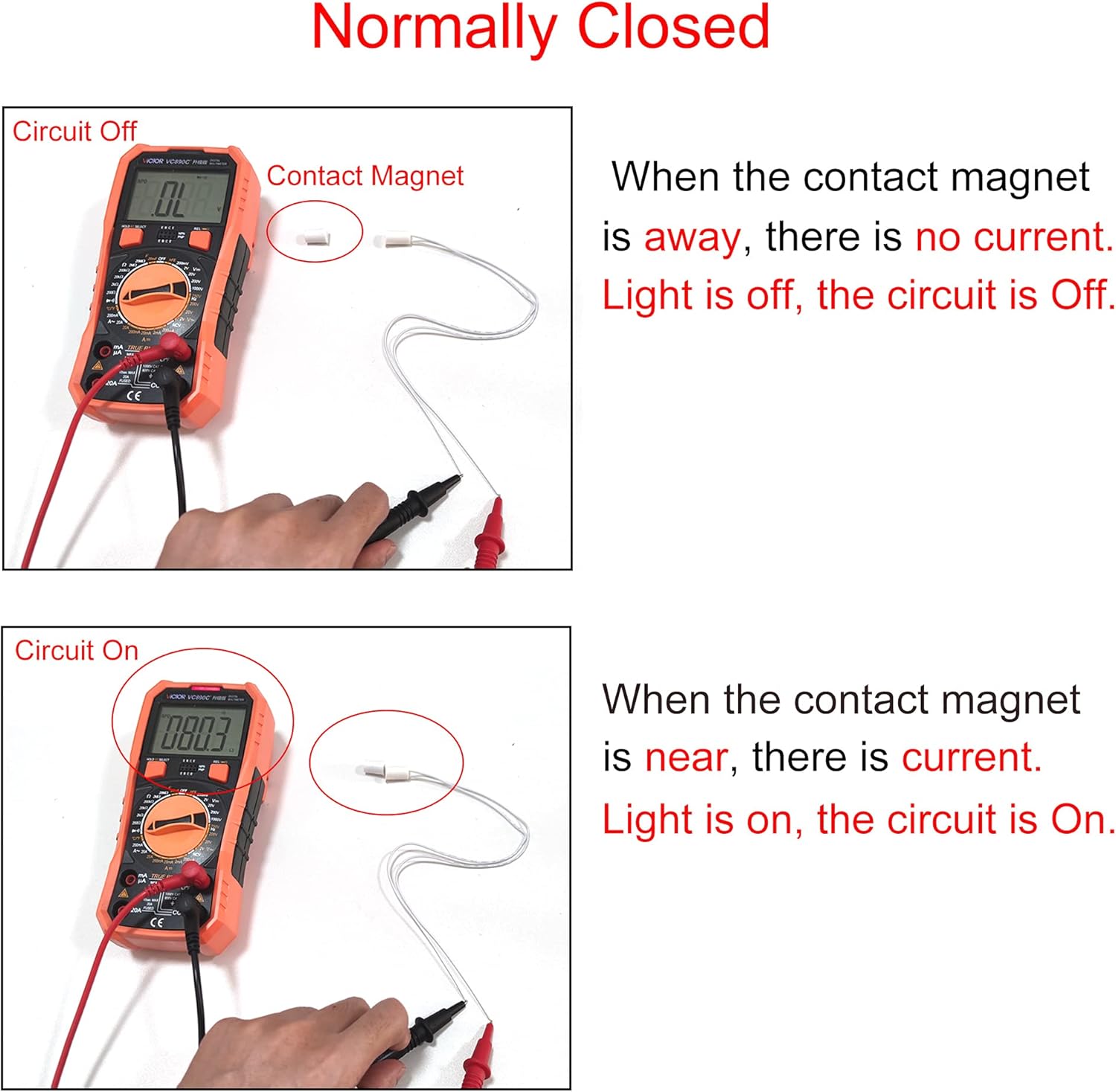

☀NORMALLY CLOSED(NC) – When the swap is near the magnet, the circuit is conductive(gentle on); when the swap is separated from the magnet, the circuit will not be conductive(gentle off).
☀ACTUATION DISTANCE – 10mm transmitting distance. The contact has quick reflection and correct detection.
☀WORKING CONDITIONS – When the magnetic door is energized, the voltage is managed at DC 0V-24V and the availability present can’t exceed 1A. The load present is 120mA.
☀WIDE APPLICATIONS – Work with all entry management and burglar alarm methods. Could be put in in picket or aluminum alloy doorways and home windows.
