SHILLEHTEK HC-SR501 PIR Motion Sensor Module Blue for Raspberry Pi, Raspberry Pi Pico, Arduino, ESP32, and Other Microcontrollers

Product Description

Our Model

ShillehTek is a model that values making electronics simple. We provide a big selection of easy-to-use electronics, lots of which include pre-soldered headers in order that our customers can deal with their purposes reasonably than waste time getting arrange. The sensors we provide are pleasant to individuals of all ages. Whether or not you’ve youngsters within the family and wish to do a enjoyable DIY undertaking with them, or you might be constructing severe purposes, you will see our sensors helpful. We repeatedly search for new electronics to assist our clients and supply steerage in different on-line communities to assist individuals find out about our merchandise.

Versatile PIR Sensor A number of Use Circumstances

Adaptable to various purposes, from securing houses to optimizing power use and enhancing automation initiatives.

Adjustable Parameters

Customise sensor habits with adjustable settings for sensitivity & time delay, guaranteeing optimum efficiency primarily based on particular undertaking necessities.

Universally Suitable

This sensor is simple to make use of with nearly any microcontroller that has an I2C interface, corresponding to all Raspberry Pi, Arduino, and ESP32 fashions

Environment friendly PIR Sensor

The HC-SR501 PIR sensor boasts low energy consumption, guaranteeing effectivity and extended operation in varied purposes.

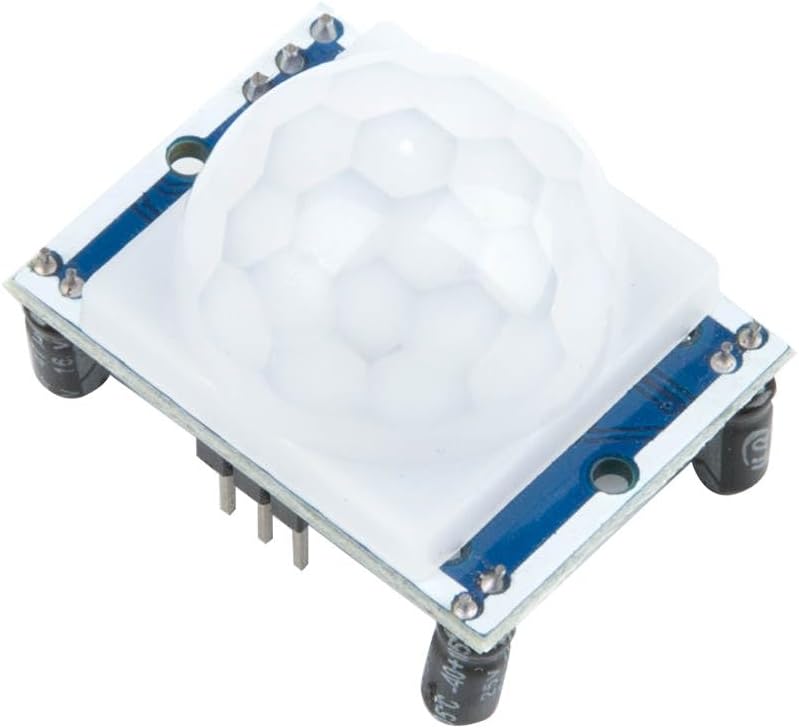

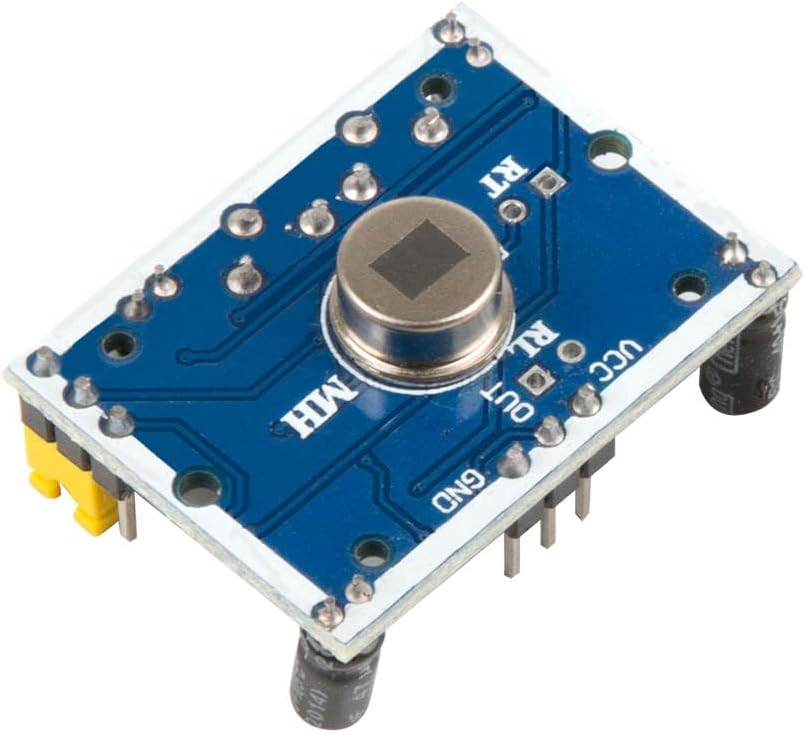

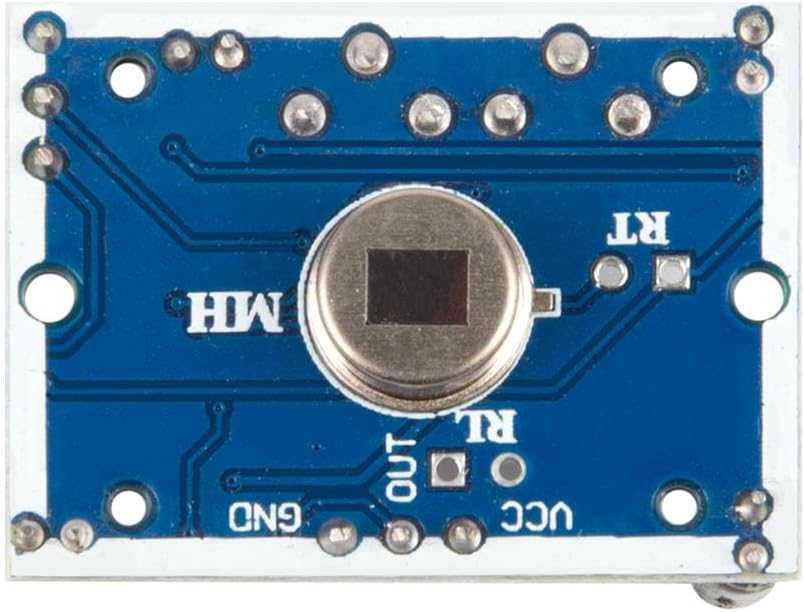

HC-SR501 Module

The HC-SR501 is an economical PIR movement sensor with adjustable settings, detecting movement as much as 7 meters away. Its digital output integrates simply with microcontrollers, making it standard for DIY initiatives, safety techniques, and automation. Famend for versatility and affordability, it is a best choice amongst electronics fanatics for dependable movement detection in varied purposes.

Pair with Different Standard ShillehTek Pre-Soldered Sensors

Improve your setup by pairing with our pre-soldered sensors obtainable at our Amazon retailer. Elevate your initiatives with seamless compatibility and precision, with easy-to-use low value sensors.

1

2

3

4

5

Specs

Sensing vary <120 °, inside 7 m Working voltage vary DC 4.8-20V Set off repeat : L = disable , H = allow Dimension 32 x 24 mm; screw-screw 28 mm, M2; Lens diameter: 23 mm Present (idle) <50 µA Temperature –15 ~ 70 °C

[USE CASES]: The HC-SR501 sensor is a extremely versatile part typically utilized in automated lighting, safety techniques, and different gadgets which might be delicate to movement. Relying on how that is arrange, HC-SR501 can function in huge distances or varied ranges, in addition to on excessive temperatures.
[WIDE VOLTAGE RANGE]: Operates between 4.8 and 20V.
[COMPATIBILITY]: This product is suitable with Arduino, Raspberry Pi (All fashions, together with the Pico and Pico W), and different microcontrollers corresponding to Arduino Nano RP2040, and Seed Studio Xiao RP2040, and extra.
[ADJUSTABLE]: HC-SR501 has a sensitivity adjustment that enables it to sense motion from 3 to 7 meters away.

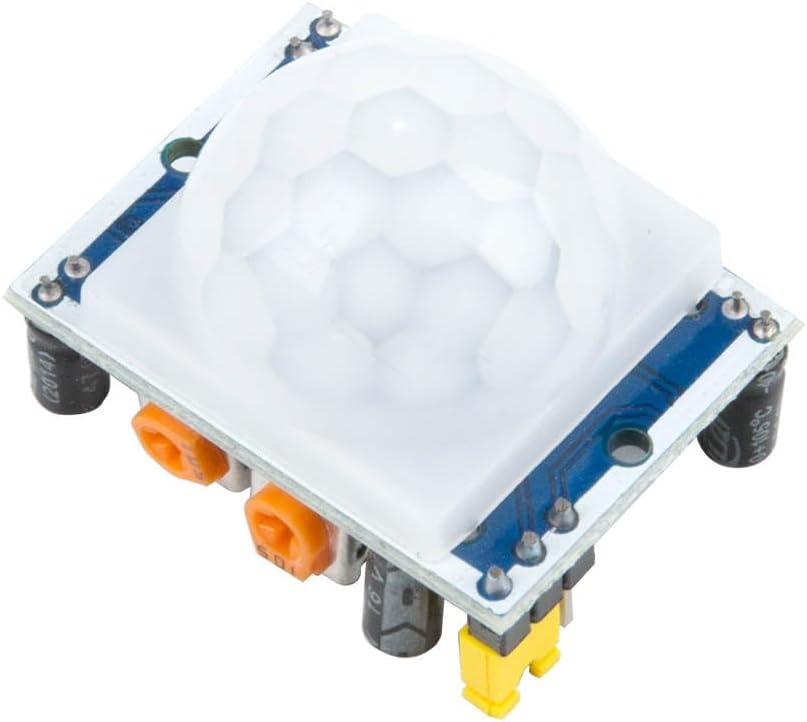

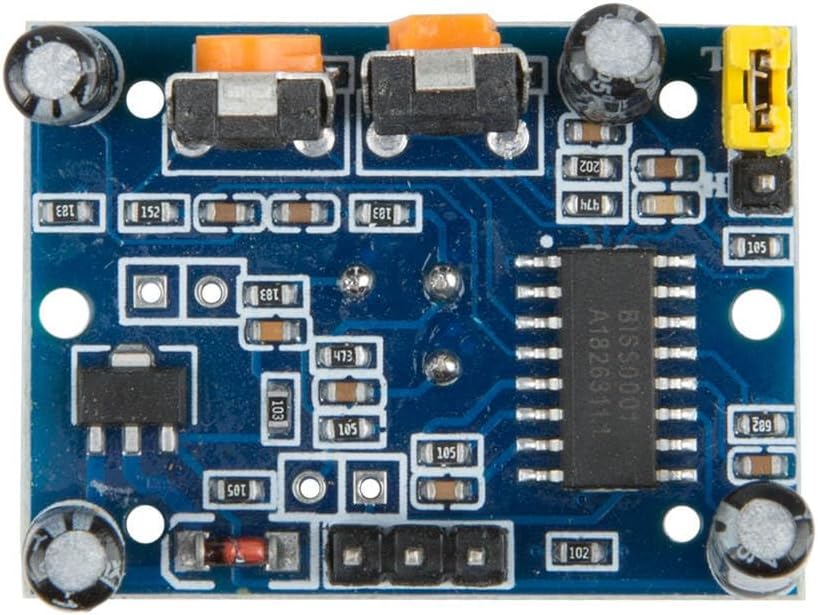

[SIMPLE MECHANISM]: If any movement is detected by the sensor, this pin worth will likely be set to “1”. The 2 potentiometers on the board permit you to modify the sensitivity and delay time after detecting a motion
[BOARD DIMENSIONS]: 32mm*24mm

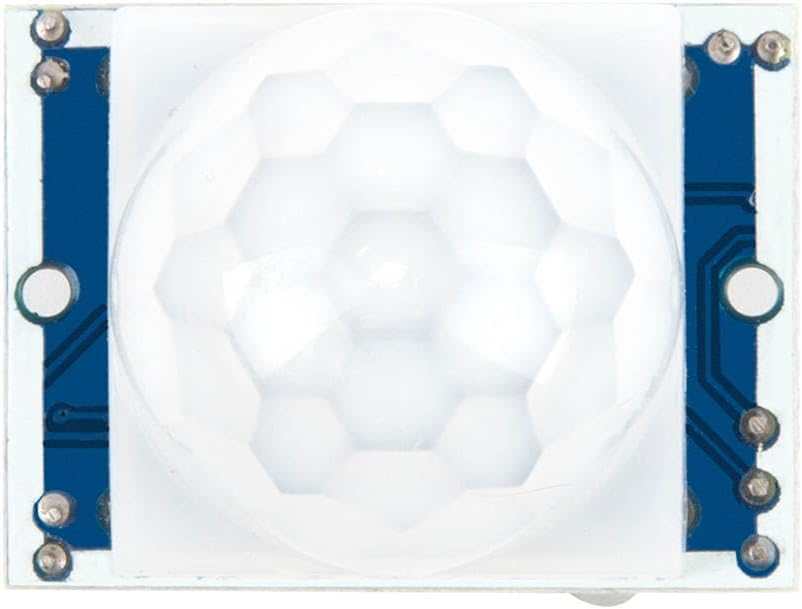

[ANGLE SENSOR]: <100 ° cone angle lens measurement sensor - 23mm diameter
