Video Doorbell Intercom System, 7″ Monitor Video Door Phone Kits, Wired Video Door Entry System, IR Night Vision Door Camera, Unlock, Dual-Way Intercom Outdoor Indoor for Home Villa (Black)
$68.00
Product Description
This video intercom door cellphone system contains 1-outdoor coloration digicam, 1-color LCD 7 inch display.
700 TV-Traces Colourful CMOS sensor. Digital camera with rain cowl, rainproof and Anti-vandal design. Constructed-in infrared sensor and 92degree extensive view angle
Can join the digital lock, you do not want go to the door to unlock on your visitor.( This electrical lock will not be included bundle) What’s extra, waterproofing and IR LED projection offers each sturdiness and clear photographs irrespective of the climate or time of day/evening.
Packing contains:
1 * Out of doors camera1 * Indoor monitor1 * Energy provide adapter2 * 4-core quick connection wire1 * 3-core quick connection wire1 * Bag screws1 * Consumer guide
Anti-fingerprint course of, Helps hands-free intercom, clear voice and good sound high quality. Very straightforward to regulate the brightness, quantity, distinction and seven ringtones of choose, fingers free intercom, electrical unlocking capabilities, monitor the skin view.
When somebody press the CALL button on outside unit, it’ll lively the indoor monitor, monitor will activate, ring and present the video outdoors. So you may see who’s outdoors. Then you may press the INTERCOM button on monitor to speak with the folks outdoors, UNLOCK the lock and press the INTERCOM button once more to finish the conversion.
Avoid robbers and different dangerous guys with out having to stroll to the entrance door or outdoors the door when strangers ring the doorbell.
Out of doors Digital camera:
Digital camera has a built-in speaker and microphone, you may communicate to guests.
Waterproof and Mud-proof
The outside digicam is connected with a rain proof cowl to stop the water and shield the outside digicam from harm. Might be instantly linked to the electrical lock.
IR Night time Imaginative and prescient
Out of doors doorbell digicam has 6 IR LED and IR sensor, it’ll mild on mechanically. It permits you to see clearly who’s knocking the door even at evening.

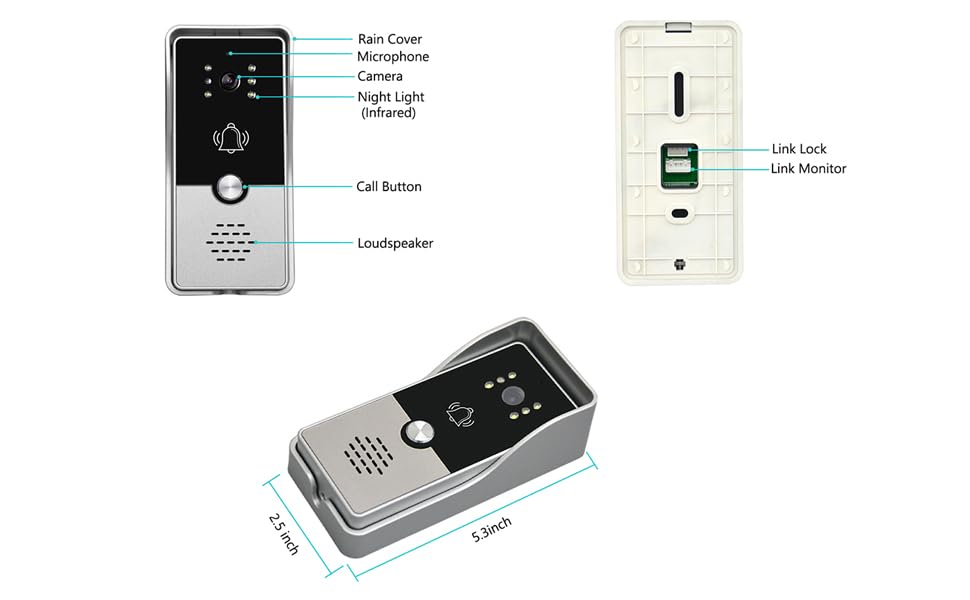

Out of doors Digital camera:
Horizontal decision:1000 TV-LinesImage sensor:Colourful CMOS sensorSensor Dimension:1/3,Visible angle:92IR Led: 6pcs, auto on/offPanel Materials: ABS/PlasticInstallation: Floor mountingSimple 4- wire connectionSize: 5.3 x 2.5 x 1.0 inch

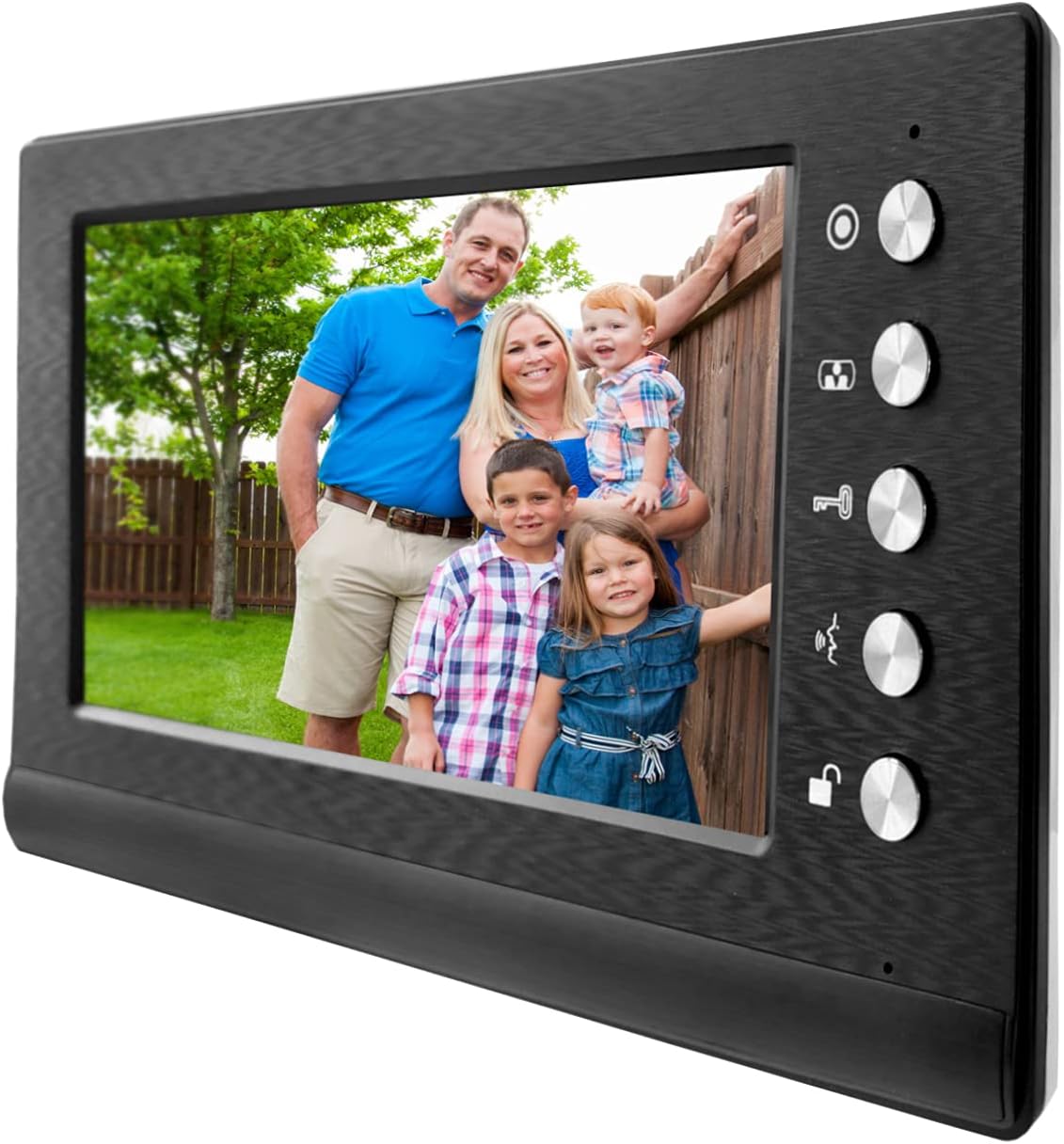

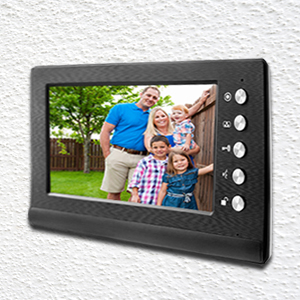

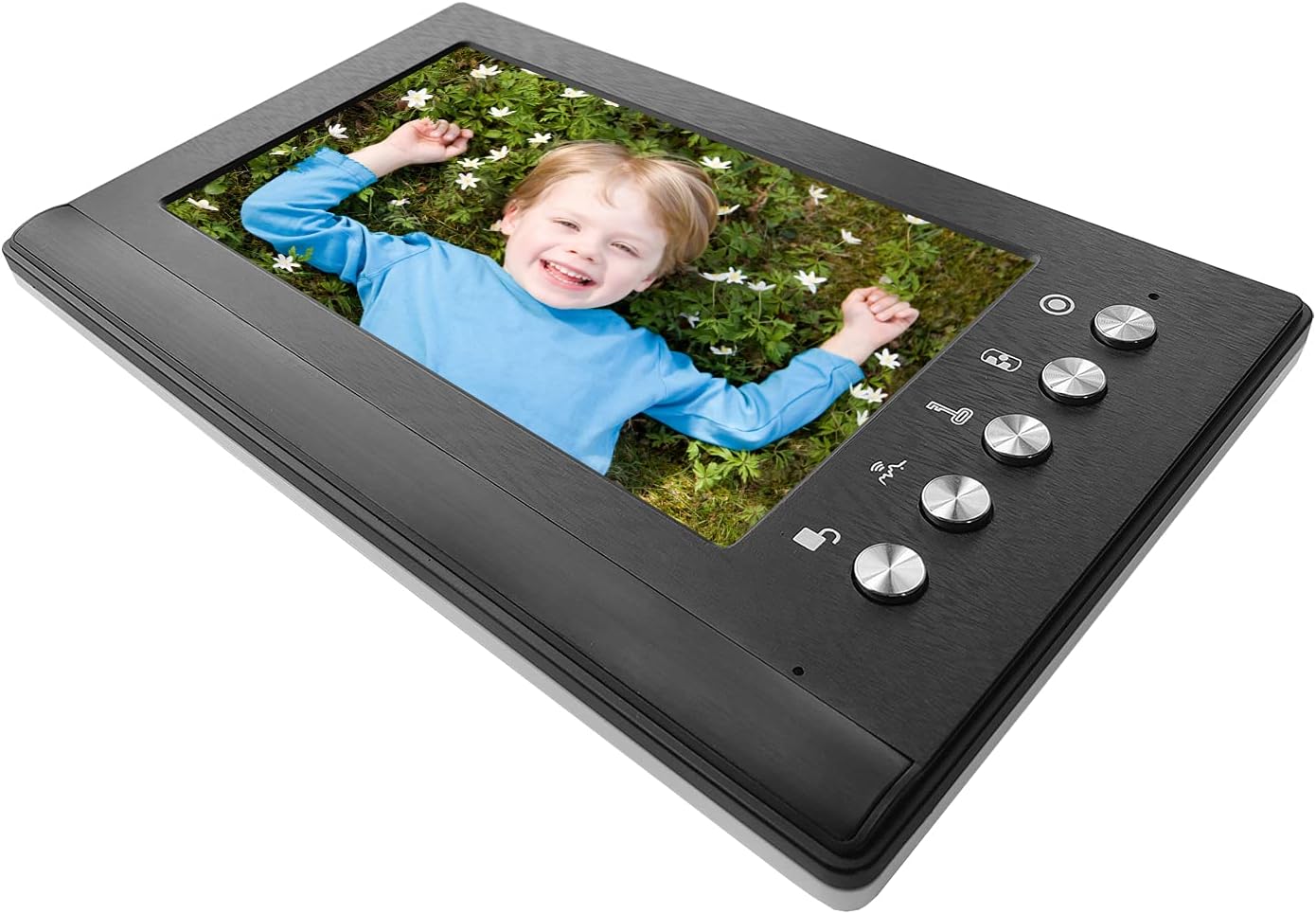

Indoor Monitor:
Avoid robbers and different dangerous guys with out having to stroll to the entrance door or outdoors the door when strangers ring the doorbell.
Actual time monitoring
When the monitor in standby mode, you may see what is going on on outdoors by press MONITOR button. by no means fear in regards to the security.
One key to observe, communication, unlock
Contact key monitor, You possibly can know who’s outdoors at a look, talk with hands-free speaker, test the state of affairs out of the door, unlocking digital management locks. by no means fear in regards to the security.

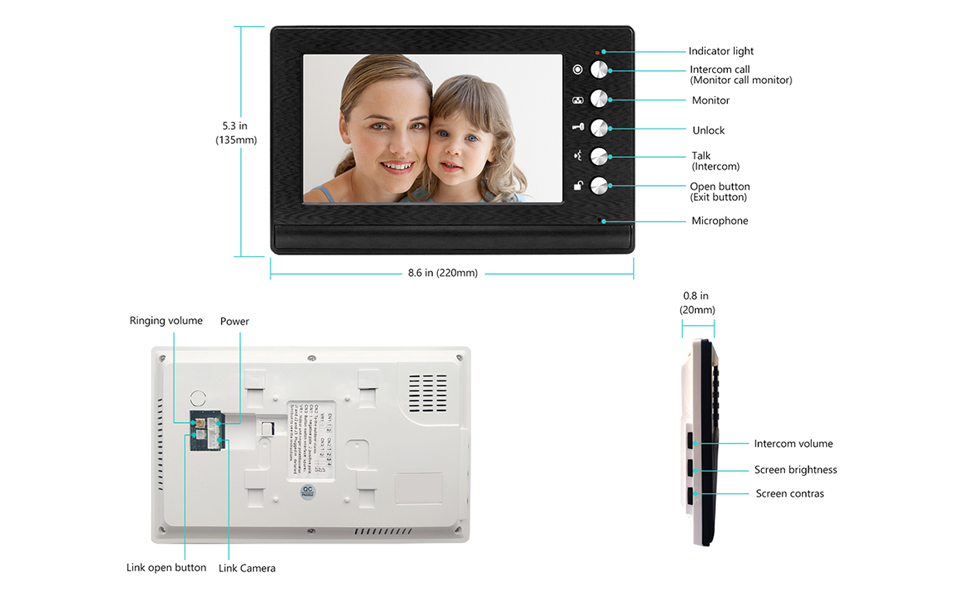

Indoor Monitor:
Display screen: 7 inch TFT-LCD contact screenResolution: 800 x 480Ring: 7-chord melody ringsPanel Materials: ABS plastic coverInstallation: Floor mounting / On the tableInput voltage:AC 100-240V 50/60HzWorking voltage:DC 12V, 1.0ASize: 8.6 x 5.3 x0.8 inch

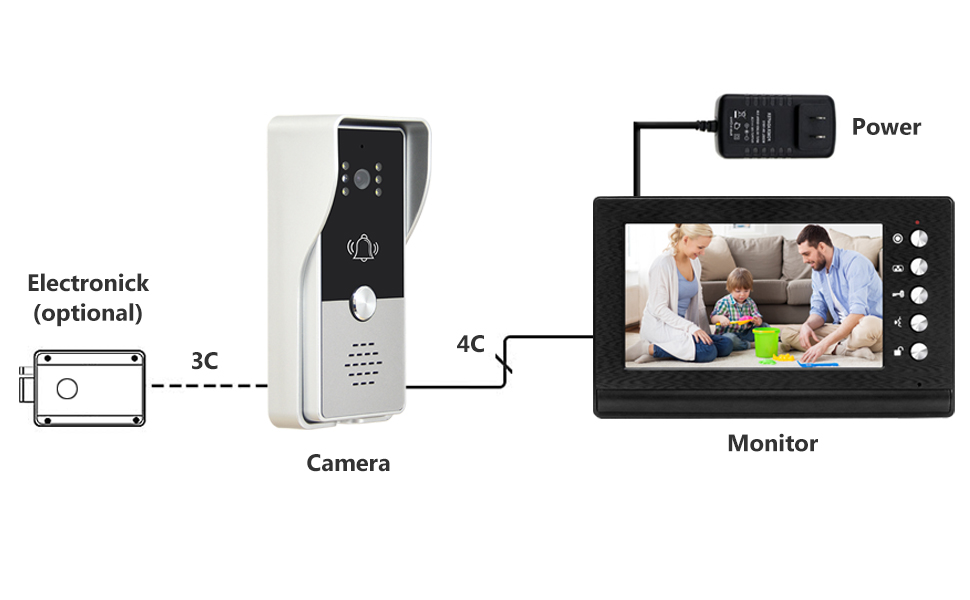

Video Intercom Connection
Wired connection stability clear imaginative and prescient for residence safety, straightforward 4-wire connection, indoor monitor and outside digicam can floor mounted. ( This electrical lock will not be included bundle)
We’re hope the next factors might help you clear up.
You need to use 4-core cable or 8-core community cable to wiring.Max distance from outside unit to indoor unit for 330ft.Out of doors digicam can unlock the 12V electrical lock, be aware the necessity to join the ability.It is suggested to check the doorbell earlier than set up.Check the doorbell: Can 2 folks to check or (digicam and monitor)preserve a distance of greater than 10ft, too shut will produce harsh noise, however that is regular.If the display reveals black /blue/, please test if the ability/ cable/ is linked,there’s a protecting movie on the show.so look slightly previous.If the intercom has no sound or is simply too small, please modify the final turbine on the correct facet of the display.If the door digicam name doesn’t ring, please reconnect the ability.
NOTE:
This wired video doorbell kits Cannot join cellphone, pc, or wi-fi. However 1 digicam can join 4 monitor (wired cable).
【Toncont Wired Video Intercom System】Make your home extra safely, When somebody press the decision button, you may see and listen to and talk with anybody who at your outside. Simply press the “UNLOCK” button of indoor monitor to welcome your guests.
【7 inch LCD monitor, Handsfree intercom】Anti-fingerprint course of, Helps hands-free intercom, clear voice and good sound high quality. Very straightforward to regulate the brightness, quantity, distinction and seven ringtones of choose, fingers free intercom, electrical unlocking capabilities, monitor the skin view.
【IR Night time Imaginative and prescient Digital camera】Digital camera with rain cowl, rainproof and Anti-vandal design. Constructed-in infrared sensor and 92º extensive view angle digicam, offers clear imaginative and prescient of holiday makers even within the darkness of evening. Wired to observe, you may lengthen longer distance on your entrance door, backyard and upstairs.
【Multi-device interconnection Two-way Communication】Help 2 outside digicam will be linked with 4 indoor screens. communication between indoor monitor and outside digicam、between monitor and monitor. All of the screens can see, hear, communicate to the outdoorbell and unlock the door.
【Simple wall-mounted set up】 Wired connection sign stability, floor mounting, we offer adapter, rain cowl, mounting bracket, 4 core wire connection terminal, screws supplies. Can be utilized in flats, villas, resorts, workplaces, public buildings.（NOTE: the digicam powered by monitor, do not join the ability adapter instantly with the digicam.)
