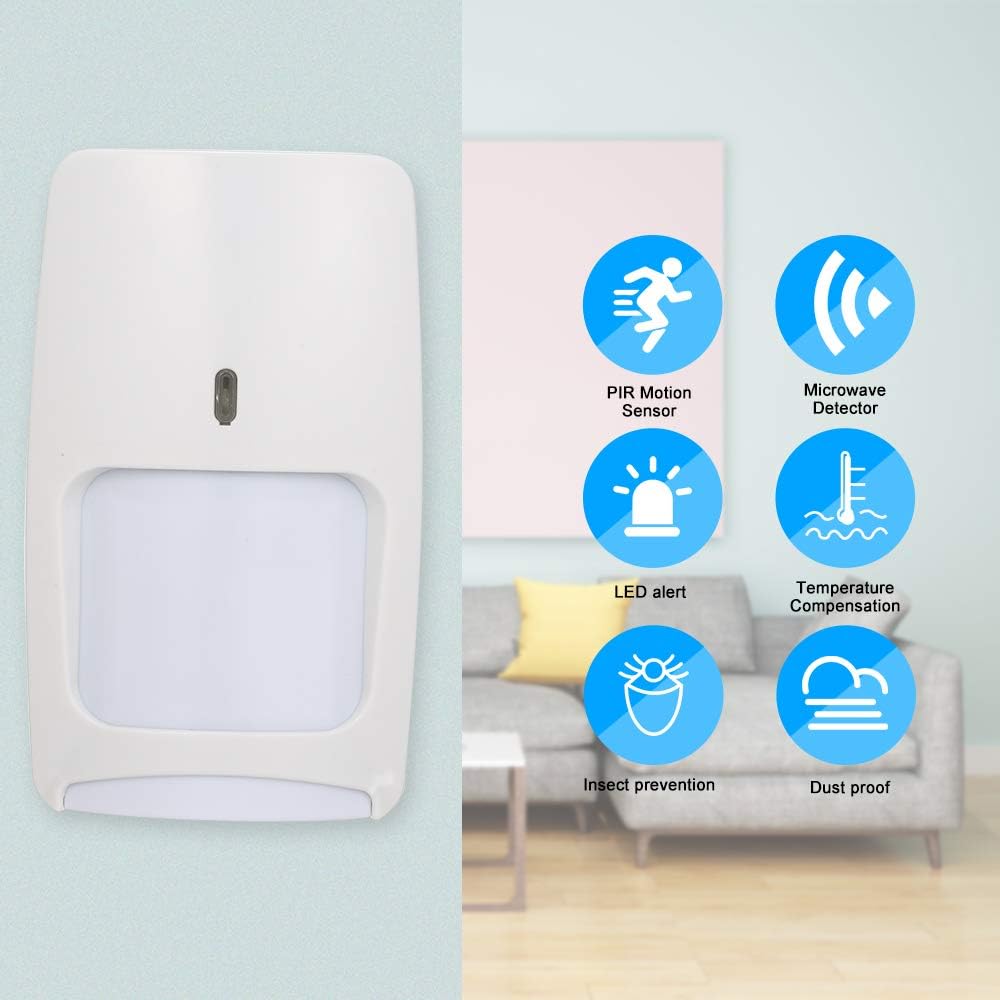

Wired Dual-tech Infrared Motion and Micro Detector Wall Mounted PIR Motion Sensor Pet Immunity for Home Burglar Security Alarm System

Overview:
This product is a digital PIR+MW detector, beautiful design, simple set up. It accommodates digital processing software program, which makes use of the infrared sensor as the primary detection unit. When the infrared sensor detects the motion sign, it’s supplemented by micro detection to find out whether or not the motion sign is actual. It may possibly keep away from false alarm brought on by out of doors interference, steady and dependable.

​Word: Don’t mount the unit in direct daylight or close to warmth sources.

Specs:
Working Voltage: 7.5V-16V DC / 25mA
Detection Methodology: PIR + Micro Detector

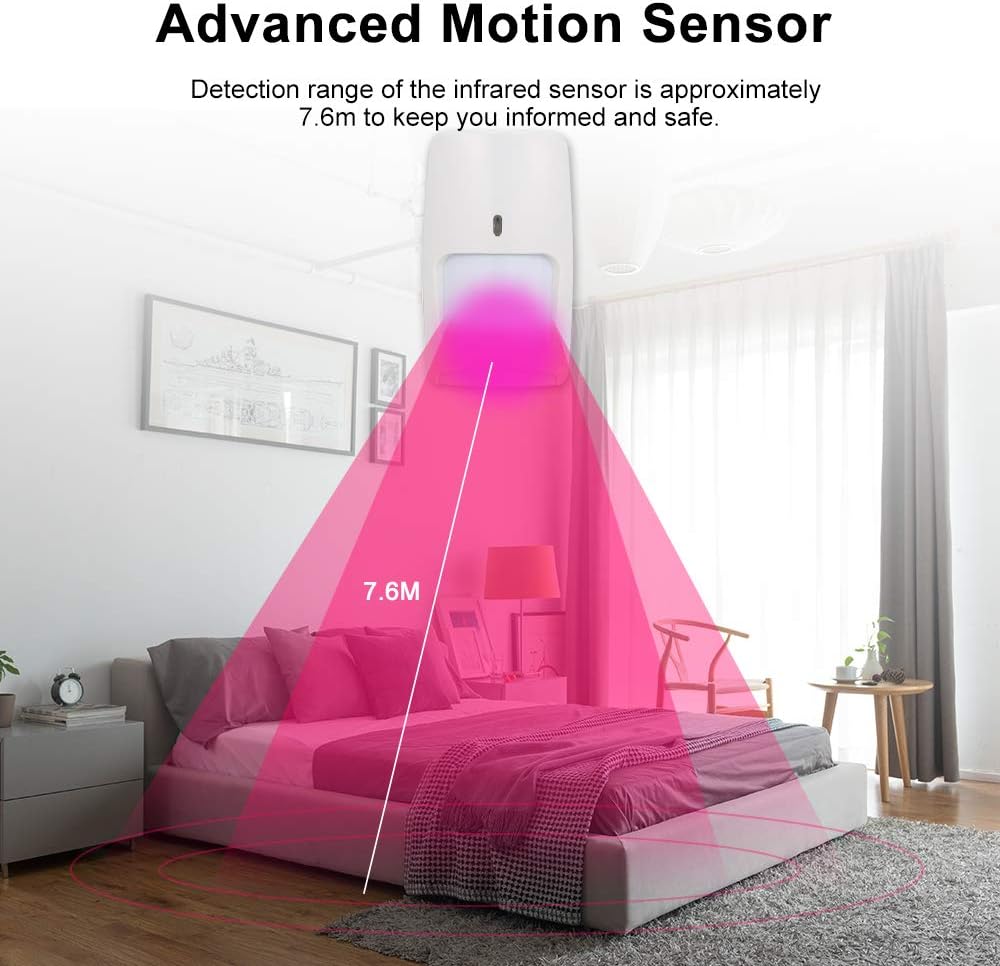

Detector :7.6mx7.6m
Sensitivity: 2-4 of regular tempo within the detection zone
Micro Frequency: 10.125GHZ
Alarm Relay: N.C. 30VDC, 500mA
Anti-tamper Change: N.C. 24VDC, 500mA
Anti White Gentle: 8000LUX
Radiation Resistance: 30V/m, 10MHz – 1000MHz
Pet Immunity: <10kg
Casing Materials: ABS
Working Temperature: -15°C to 55°C
Relative Humidity: 5%-95% (RH)
Colour: White
Merchandise Measurement: Approx. 124*75*43mm/4.88*2.95*1.69in
Merchandise Weight: Approx. 125g/4.41oz
Package deal Measurement: Approx. 131*75*54mm/5.15*2.95*2.12in
Package deal Weight: Approx. 145g/5.12oz

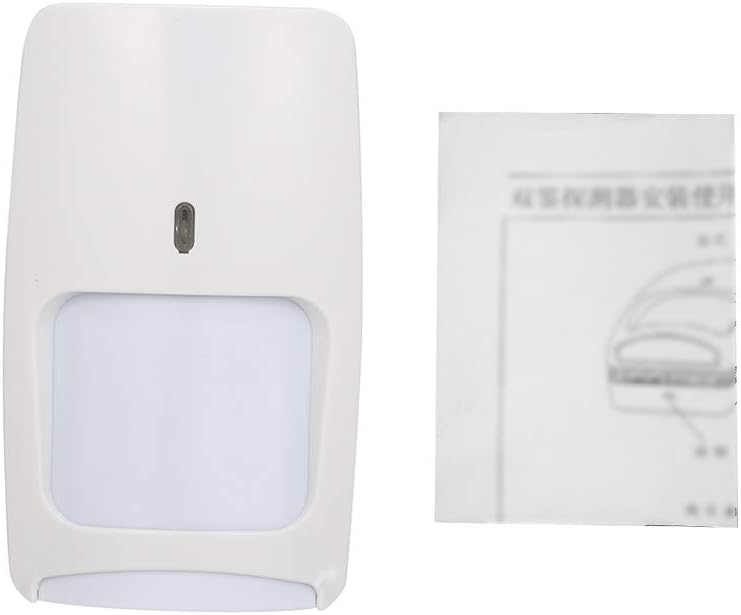

Package deal Checklist:
1 * Wired PIR Sensor
1 * Consumer Guide
Ok-band micro detection expertise can additional suppress false alarms and enhance detector sensitivity.
Glorious anti-false alarm and seize capabilities.
Simple and fast to put in.
Constructed-in temperature compensation and micro anti-interference operate, appropriate to be used in a wide range of cold and hot environments.
The ABS housing is sturdy and has wonderful shock resistance.
